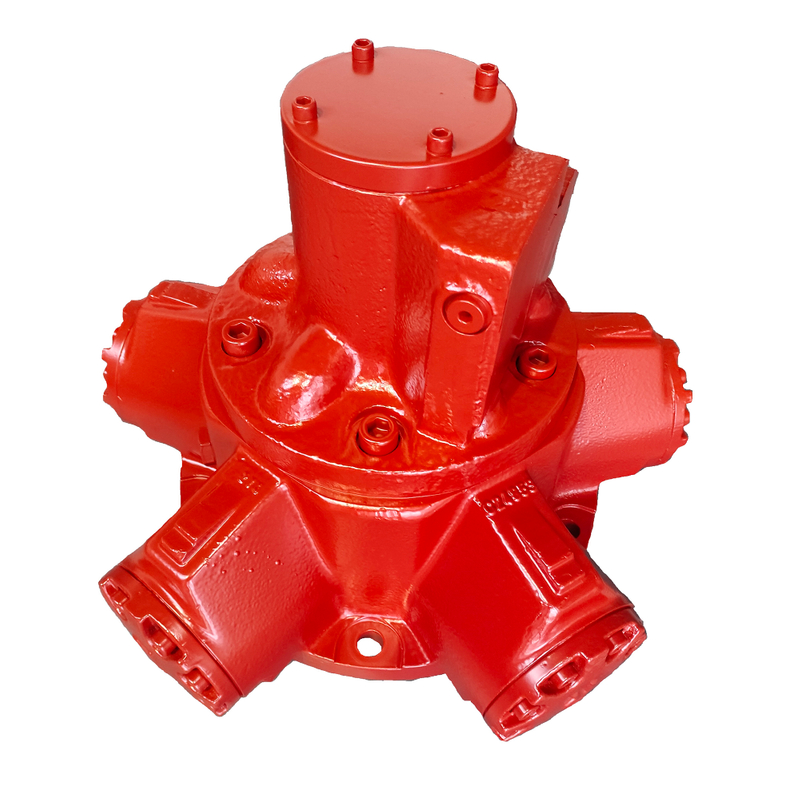

Motor for HMHDB125

HMHDB125 hydraulic motor, standard Displacement 2050cm3/r, optional non-standard Displacement 1800 cm3/r. Rated Pressure 210bar, Rated Power 117KW.
Heavy load bearing, the shaft can bear greater Side Load.

Model:
HMHDB125

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMHDB125 hydraulic motor, standard Displacement 2050cm³/r, optional non-standard Displacement 1800 cm³/r. Rated Pressure 210bar, Rated Power 117KW.

Heavy load bearing, the shaft can bear greater Side Load.

The HMHDB125 hydraulic motor is a low-speed, high-torque hydraulic motor. It is a high-performance hydraulic drive device with a radial piston structure. It is commonly used in construction machinery, agricultural machinery and other heavy equipment to provide power and motion control.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
B125	2050	28.00	190	215	210	275	117	140
B125/1800	1800	24.04	215	255	210	275	114	136

Installation Dimensions

Installation Dimensions for HMHDB125.pdf

FAQ

FAQs

Is the installation dimension of your HMHDB125 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMHDB125 hydraulic motor is the identical installation dimension with the original motor from UK which can be used without any modifying. When model is confirmed identically the motor will be completely consistent.
Is the Accessories of your HMHDB125 hydraulic motor interchangeable and compatible with the original one from the UK?

Our HMHDB125 hydraulic motors are suitable for heavy equipment such as ship windlasses and winches. Their low-speed and high-torque characteristics are consistent with the original British design.
The accessories of our HMHDB125 hydraulic motor are same as the original from UK.
Can the HMB series hydraulic motor Valve seal ring be interchangeable and universal?

There are 3 sizes of HMB series Valve seal ring available in three sizes: 3 inches, 4 inches, 4.5 inches, and Valve seal ring of same size can be interchanged and used alternatively.
FM3/S03/SM3/SFM3: 3 inches
FM4/S04/SM4/SFM4: 4 inches
S045: 4.5 inches
