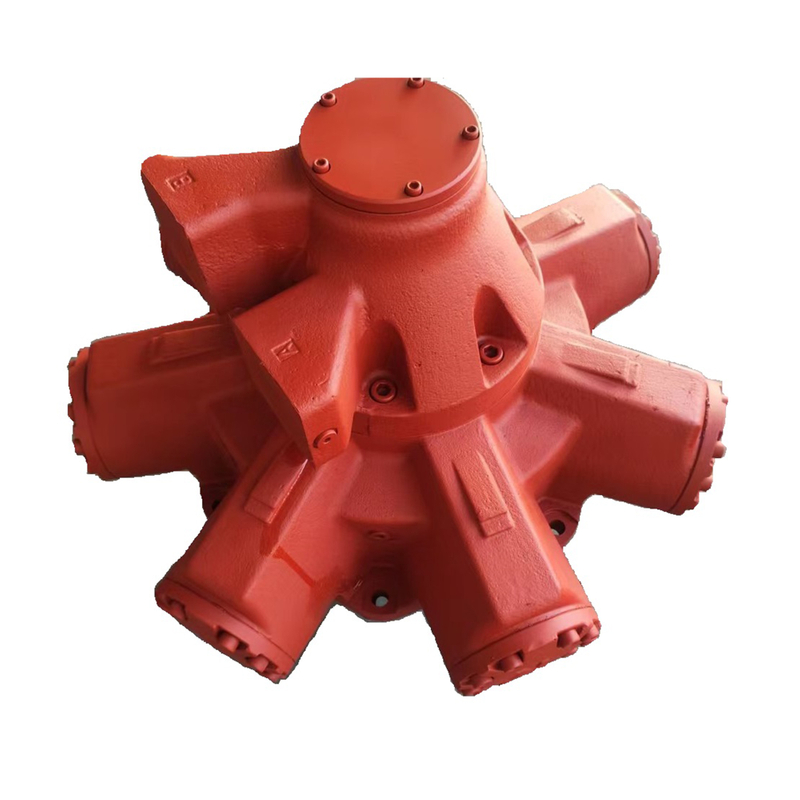

Motor for HMB270

HMB270 hydraulic motor, standard Displacement 4310cm3/r, optional non-standard Displacement4588cm3/r、4500cm3/r、3688cm3/r、3600cm3/r. Rated Pressure 210bar, Rated Power 149KW.

Model:
HMB270

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMB270 hydraulic motor, standard Displacement 4310cm³/r, optional non-standard Displacement4588cm³/r、4500cm³/r、3688cm³/r、3600cm³/r. Rated Pressure 210bar, Rated Power 149KW.

The HMB270 hydraulic motor is a high-performance, reliable, compact hydraulic power unit suitable for a variety of industrial applications and mechanical equipment, providing stable power output and efficient performance.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
B270	4310	61.62	110	140	210	275	149	178
B270/4588	4588	65.65	105	130	210	275	151	180
B270/4500	4500	64.42	106	135	210	275	150	180
B270/3688	3688	51.65	128	155	210	275	145	174
B270/3600	3600	50.41	130	160	210	275	144	172

Installation Dimensions

Installation Dimensions for HMB270-325.pdf

FAQ

FAQs

Is the installation dimension of your HMB270 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Yes，Our HMB270 hydraulic motor is the identical installation dimension with the original motor from UK which can be used without any modifications. Once the model is confirmed all the installation dimensions of the motor will be exactly the same. However as our HMB270 motorcase diameter is the same as the HMB325 motorcase diameter, then our HMB270 is 30mm than the original British one.
Is the Accessories of your HMB270 hydraulic motor interchangeable and compatible with the original one from the UK?

Except for the motorcase and piston，other accessories of our HMB270 hydraulic motor is identical with the original from UK.
What is the performance change of your HMB270 motor after using the HMB325 motorcase?

Our HMB270 motor used the HMB325 motorcase, and since the length of the motorcase cylinder was 16mm longer the standard, we made the piston the maximum extension, which increased the effective support length of the piston, especially under load impact, and improved withstand the impact， effectively avoiding probability of the motorcase cylinder being torn under impact load, and extending the life of the motor.
