Product Introduction

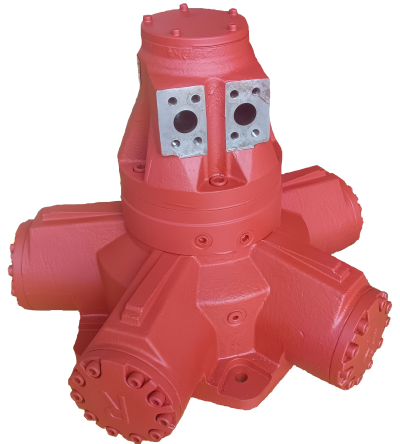

The MRH2-3150 is a high-performance hydraulic motor commonly used in heavy-duty equipment in the industrial and construction sectors, such as excavators, cranes, and road rollers. Originally by NACHI Corporation of Japan, this motor is characterized by high performance, high reliability, and long service life from Tianshu China factory directly. Here are some key features of the MRH2-3150 hydraulic motor:
High Power Density: This hydraulic motor features high efficiency and high power density, providing large torque and speed, suitable for applications requiring high output force.
High Precision: The MRH2-3150 hydraulic motor employs precision manufacturing processes and high-quality components, ensuring smooth operation, low noise, and minimal vibration.
High Reliability: This hydraulic motor utilizes advanced sealing technology and wear-resistant materials, providing excellent durability and wear resistance, enabling long-term stable operation in harsh working environments.
Easy Maintenance: The MRH2-3150 hydraulic motor's rational structural design facilitates disassembly and maintenance, reducing maintenance costs and downtime.
Wide Application Range: This hydraulic motor is suitable for various hydraulic systems and mechanical equipment, meeting the needs of different industries.
Technical Parameters
MODEL | DISPACEMENT | MAX. SET | SPEED RANGE rpm | WEIGHT | |||||
LARGE DISP. | SMALL DISP. | ||||||||
LARGE | SMALL | at 20.6MPa | at 24.5MPa | at 20.6MPa | at 24.5MPa | ||||
MRH2-3150 | 1 | 3087 | 1570 | 24.5 | 5∽135 | 7∽115 | 10∽250 | 10∽210 | 305 |
2 | 0 | 0∽1000 | 0∽1000 | ||||||
5 | 2100 | 10∽185 | 10∽155 | ||||||
7 | 945 | 10∽385 | 10∽325 | ||||||
9 | 1040 | 10∽355 | 10∽300 | ||||||
Installation Dimensions
FAQ
