CA140
| Quantity: | |
|---|---|
Product Introduction

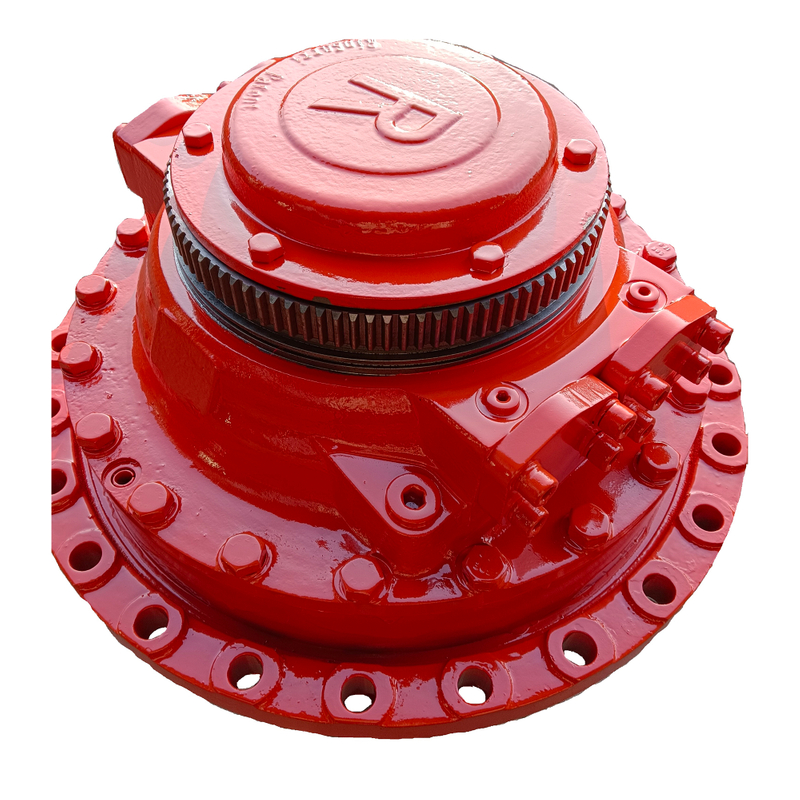

CA140 hydraulic motor displacement range 5024-8800mL/r, rated pressure 280bar, maximum pressure 420bar, maximum power 490 KW, available options include: Internal Spline Connection, Shrink Fit Connection, Viton, Two-Speed, rear- interface, Through Hole, etc.
CA140 hydraulic motor is a high-performance hydraulic power unit designed to meet the demands of diverse industrial applications. With its compact design and exceptional performance, it provides stable and powerful power for a wide range of machinery and equipment.
CA140 hydraulic motor is an efficient, reliable, and easy-to-maintain hydraulic drive unit suitable for a wide range of industrial applications and machinery, providing stable power output for drive and control systems.
Technical Parameters
Motor type | FULL DISP. | HALF DISP. | SPEED | PRESSURE | MAX. | WEIGHT | |||||
DISP. | SPEC. trque | DISP. | SPEC. trque | Rated. | Max. | Rated. | Max. | spline | hollow | ||
CA140 80 | 5024 | 80 | 2512 | 40 | 170 | 245 | 280 | 420 | 395 | 325 | 364 |
CA140 100 | 6280 | 100 | 3140 | 50 | 140 | 205 | 280 | 420 | 410 | ||
CA140 120 | 7542 | 120 | 3771 | 60 | 125 | 180 | 280 | 420 | 440 | ||
CA140 140 | 8800 | 140 | 4400 | 70 | 120 | 170 | 280 | 420 | 490 | ||
