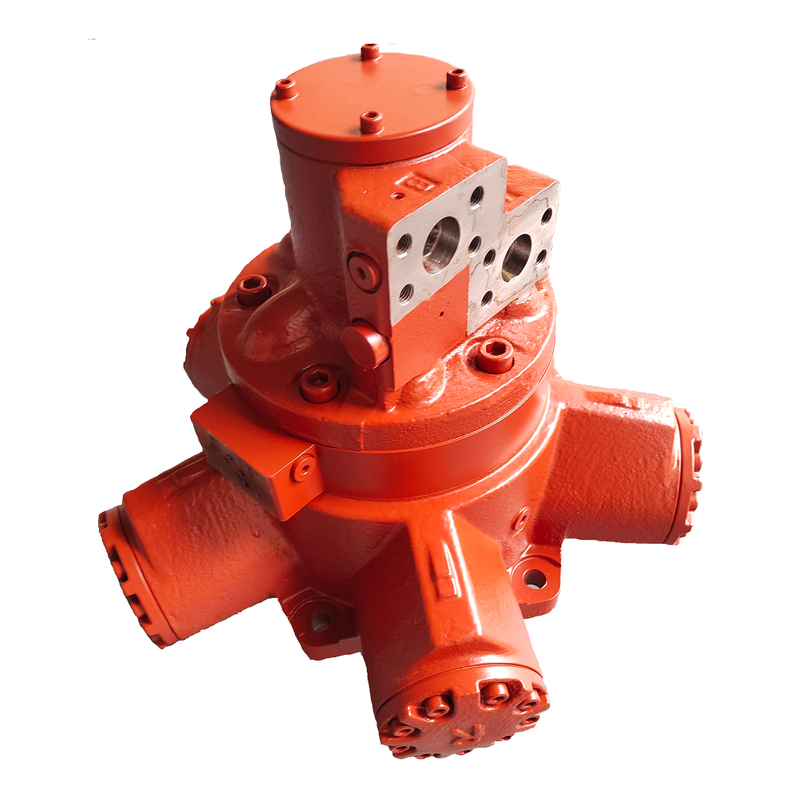

Motor for HMC080

HMC080 two-speed motor has two preset displacements to choose from a wide range to suit specific application requirements. Control and selection is made via directional valve which can be remotely mounted or directly mounted on the motor. The displacement can be easily changed while the motor is running.

Model:
HMC080

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMC080 two-speed motor has two preset displacements to choose from a wide range to suit specific application requirements. Control and selection is made via directional valve which can be remotely mounted or directly mounted on the motor. The displacement can be easily changed while the motor is running.

Technical Parameters

Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	Rated. Rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
C080	97.6	1600	23.53	150	190	210	275	78	93
	90	1475	21.11	165	205	210	275	77	92
	85	1393	19.71	175	220	210	275	76	91
	80	1310	18.33	185	235	210	275	75	89
	75	1230	17.01	200	250	210	275	75	89
	70	1147	15.68	215	275	210	275	74	89
	65	1065	14.39	235	285	210	275	74	89
	60	983	13.13	255	315	210	275	74	88
	55	900	11.88	285	355	210	275	74	89
	50	820	10.69	310	385	210	275	73	87
	45	737	9.96	330	435	210	275	72	87
	40	655	8.75	360	480	210	275	69	83
	35	574	7.58	385	500	210	275	64	77
	30	492	6.41	400	500	210	275	56	68
	25	410	5.28	400	500	210	275	46	56
	20	328	4.17	400	500	210	275	37	44
	15	246	3.09	400	500	210	275	27	33
	10	134	2.03	400	500	210	275	18	21
	5	82	0	800	800	17	17	0	0
	0	0	0	1000	1000	17	17	0	0

Installation Dimensions

Installation Dimensions for HMC080.pdf

FAQ

FAQs

Is the installation dimension of your HMC080 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMC080 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
Is the Accessories of your HMC080 hydraulic motor interchangeable and compatible with the original one from the UK?

The accessories of our HMC080 hydraulic motor are same as the original from UK.
