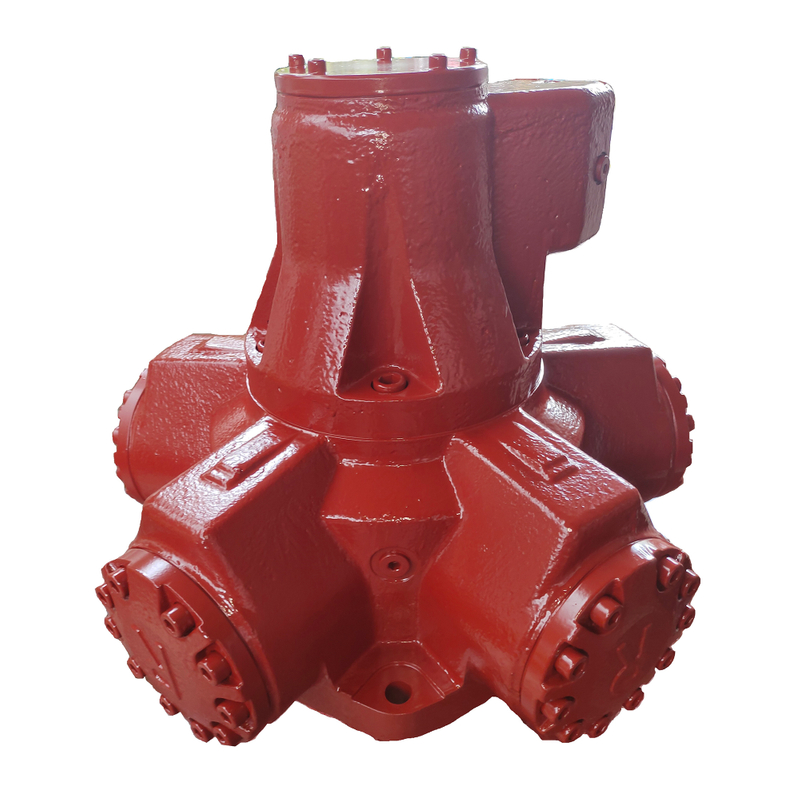

Motor for HMB125

HMB125 hydraulic motor, standard Displacement 2050cm3/r, optional non-standard Displacement 1800 cm3/r. Rated Pressure 210bar, Rated Power 117KW.

Model:
HMB125

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMB125 hydraulic motor, standard Displacement 2050cm³/r, optional non-standard Displacement 1800 cm³/r. Rated Pressure 210bar, Rated Power 117KW.

This motor is available with standard or with heavy duty shaft bearings, model types HMB125 respectively. Various features and options are available including, on request, mountings to match competitor interfaces.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
B125	2050	28.00	190	215	210	275	117	140
B125/1800	1800	24.04	215	255	210	275	114	136

Installation Dimensions

Installation Dimensions for HMB125.pdf

FAQ

FAQs

Is the installation dimension of your HMB125 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Yes. Our HMB125 hydraulic motor is as the same installation dimension as the original motor from UK without any amending. If the model is confirmed to be the same, there will be all the same the installation dimensions of the motor exactly.
2、Is the Accessories of your HMB125 hydraulic motor interchangeable and compatible with the original one from the UK?

Yes.There the accessories of our HMB125 hydraulic motor is totally identical to the original one from UK.
Is the distribution kit of HMB series five-cylinder hydraulic motor (including HMB045/HMB060/HMB080/HMB100/HMB125/HMB150/HMB200) interchangeable and universal?

Yes. There is the universal for motorcase interface of the HMB series five-cylinder hydraulic motor (including HMB045/HMB060/HMB080/HMB100/HMB125/HMB150/HMB200). And it can also used to be alternatively for distribution kit (including FM3/S03/FM3/SFM3/FM4/S04/SM4/SFM4).
