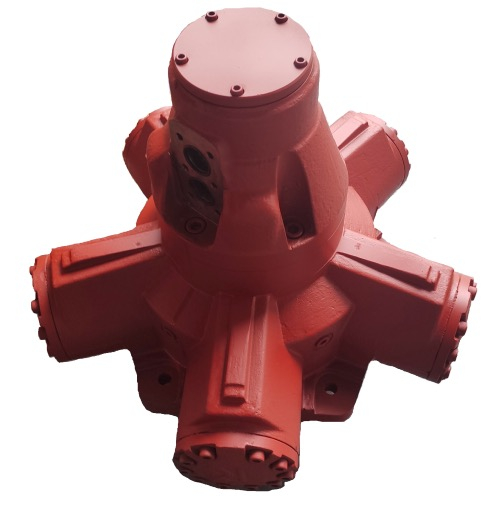

Motor for HMB200 for marine equipment

HMB200 hydraulic motor, standard Displacement 3087cm3/r, optional non-standard Displacement2870cm3/r. Rated Pressure 210bar, Rated Power 136KW.
The HMB200 hydraulic motor is a type of hydraulic motor that is designed to operate using hydraulic fluid to generate torque and power. It is commonly used in industrial and agricultural applications, such as construction equipment, mining machinery, and forestry equipment.

Model:
HMB200

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMB200 hydraulic motor is a high-pressure motor that can produce a maximum torque of 200 Nm, making it suitable for heavy-duty applications.

The HMB200 hydraulic motor is typically powered by a hydraulic pump that supplies pressurized hydraulic fluid to the motor. The motor converts the hydraulic fluid's pressure into mechanical energy, which is then used to drive the machinery or equipment it is connected to. The motor is designed to be reliable and durable, with a long service life and low maintenance requirements.

One of the key features of the HMB200 hydraulic motor is its ability to operate at high pressures, which allows it to produce a high torque output. This makes it suitable for applications where a large amount of power is required, such as in heavy-duty construction equipment or mining machinery.

Additionally, the motor is designed to be compact and lightweight, making it easy to install and integrate into existing machinery.

Overall, the HMB200 hydraulic motor is a versatile and powerful option for a wide range of industrial and agricultural applications. Its high torque output and durability make it an excellent choice for heavy-duty tasks, while its compact design makes it easy to install and integrate into existing equipment.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
B200	3087	45.65	135	165	210	275	136	163
B200/2870	2870	40.60	145	175	210	275	130	155

Installation Dimensions

Installation Dimensions for HMB150-200.pdf

FAQ

FAQs

Is the installation dimension of your HMB200 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMB200 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
It's important to note that while the installation dimensions are the same, it's always a good idea to check the technical specifications and performance characteristics of the HMB200 hydraulic motor to ensure that it meets the requirements of your specific application. This includes checking the maximum torque output, maximum pressure, and rotational speed, as well as any other relevant parameters that may be required for your application.Overall, the compatibility of our HMB200 hydraulic motor with the original motor from the UK makes it an excellent choice for a wide range of industrial and agricultural applications. Its high torque output, durability, and compact design make it an ideal solution for heavy-duty tasks, while its easy installation and integration make it a cost-effective and efficient upgrade or replacement option.
Is the Accessories of your HMB200 hydraulic motor interchangeable and compatible with the original one from the UK?

The accessories of our HMB200 hydraulic motor are same as the original from UK.
Some of the common accessories that may be included with your HMB200 hydraulic motor include:
Oil seals and gaskets: These are essential for maintaining proper lubrication and preventing leaks.
Bearings: These are used to support the rotating parts of the motor and help to reduce friction and wear.
Shafts and couplings: These are used to connect the motor to the equipment it is driving.
Oil filters: These are used to remove contaminants from the hydraulic fluid, helping to keep the motor clean and operating efficiently.
It's important to regularly inspect and maintain these accessories to ensure that they are in good working condition and to replace them as needed. This can help to extend the life of your HMB200 hydraulic motor and ensure that it continues to operate reliably and efficiently.Overall, having the same accessories as the original motor from the UK makes it easy to maintain and repair your HMB200 hydraulic motor, ensuring that it remains a reliable and cost-effective solution for your industrial or agricultural application.
What is the difference between the Accessories of HMB150 hydraulic motor and HMB200 hydraulic motor, which ones are different, which ones can interchanged and which ones are universal?

The different Accessories between HMB150 hydraulic motor and HMB200 hydraulic motor are: piston, Con-Rod; all other accessories are completely;
Note:
1. The piston of HMB200 can be used for HMB150 hydraulic motor, but the piston of HMB150 hydraulic motor cannot be used for HMB200 hydraulic motor.
2. The difference between the Drum of HMB150 hydraulic motor and that HMB200 hydraulic motor is that the eccentric distance is different.
