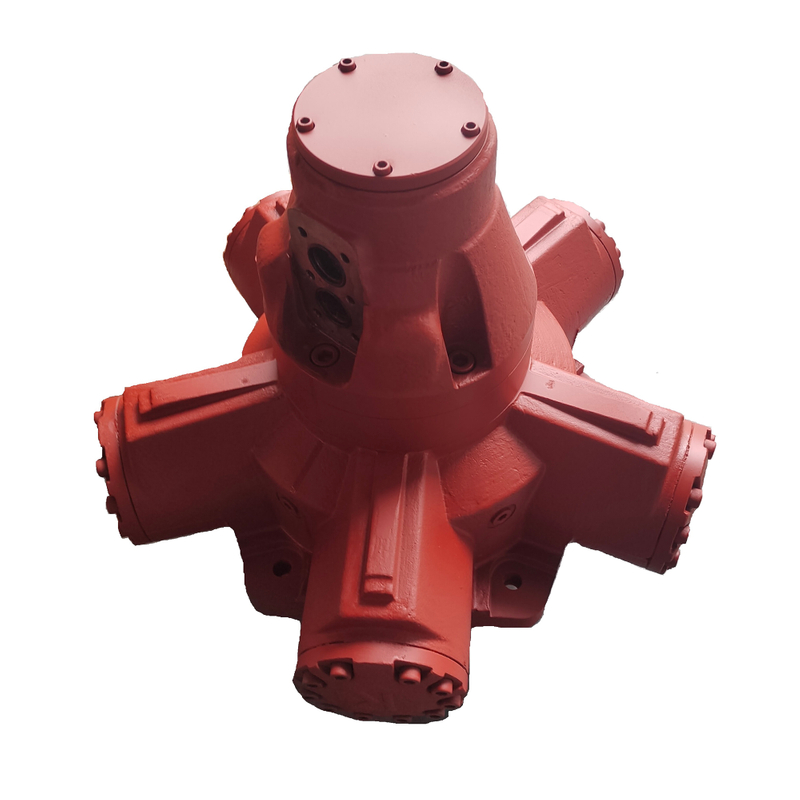

Motor for HMB200

HMB200 hydraulic motor, standard Displacement 3087cm3/r, optional non-standard Displacement2870cm3/r. Rated Pressure 210bar, Rated Power 136KW.

Model:
HMB200

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMB200 hydraulic motor, standard Displacement 3087cm³/r, optional non-standard Displacement2870cm³/r. Rated Pressure 210bar, Rated Power 136KW.

The HMB200 hydraulic motor is a high-performance, reliable, compact hydraulic power unit suitable for various industrial applications and mechanical equipment, providing stable power output.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
B200	3087	45.65	135	165	210	275	136	163
B200/2870	2870	40.60	145	175	210	275	130	155

Installation Dimensions

Installation Dimensions for HMB150-200.pdf

FAQ

FAQs

Is the installation dimension of your HMB200 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMB200 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
This means that whether the HMB200 hydraulic motor is manufactured in China or in the UK, its mounting dimensions adhere to the same standards and specifications, ensuring interchangeability and interoperability between the two. This consistency allows for easy installation when a hydraulic motor needs to be replaced or upgraded, without the need for special adaptation or modification. This compatibility is a key consideration for both machinery manufacturers and users, ensuring the proper operation and continued performance of the equipment.
Is the Accessories of your HMB200 hydraulic motor interchangeable and compatible with the original one from the UK?

The accessories of our HMB200 hydraulic motor are same as the original from UK.
This means that whether it is a domestically produced HMB200 hydraulic motor or a hydraulic motor originating in the UK, its key components have the same specifications, dimensions and performance and can be seamlessly replaced without the need for special adaptation or modification. This interchangeability and versatility simplifies the repair and maintenance process, reduces costs, and ensures the normal operation of the equipment.
What is the difference between the Accessories of HMB150 hydraulic motor and HMB200 hydraulic motor, which ones are different, which ones can interchanged and which ones are universal?

The different Accessories between HMB150 hydraulic motor and HMB200 hydraulic motor are: piston, Con-Rod; all other accessories are completely;
Note: 1. The piston of HMB200 can be used for HMB150 hydraulic motor, but the piston of HMB150 hydraulic motor cannot be used for HMB200 hydraulic motor.
2. The difference between the Drum of HMB150 hydraulic motor and that HMB200 hydraulic motor is that the eccentric distance is different.
