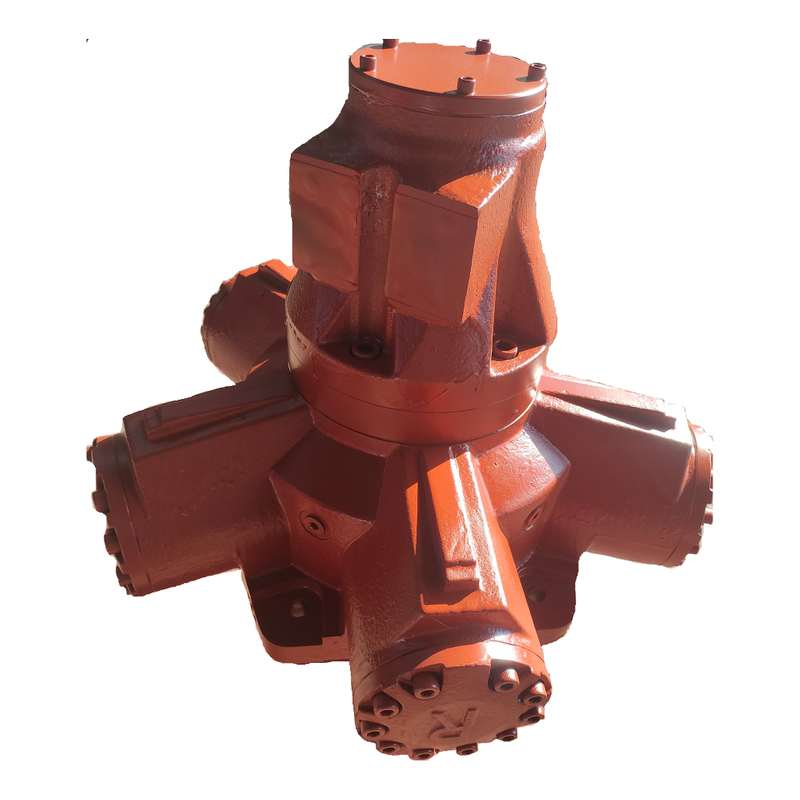

Motor for MRH-3150

MRH-3150 hydraulic motor, Geometric Displacement 3087cm3/r. Rated Pressure 210bar, Rated Power 135KW.

Model:
MRH-3150

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

MRH-3150 hydraulic motor, Geometric Displacement 3087cm³/r. Rated Pressure 210bar, Rated Power 135KW.

The MRH-3150 hydraulic motor is a high-performance, reliable, compact, and easy-to-maintain hydraulic power unit. It is suitable for a wide range of industrial applications and machinery, providing excellent power output and stable operating performance. With its superior performance, reliable quality, and wide applicability, it provides powerful and stable power support for a wide range of industrial equipment, making it a trusted hydraulic power solution.

Technical Parameters

MODEL	DISPACEMENT mL/r	MAX. SET PRESSURE Mpa (kgf/cm2）	SPEED RANGE rpm		WEIGHT kg
			at 20.6MPa （210 kgf/cm²）	at 24.5MPa （250 kgf/cm²）
MRH-3150	3087	24.5 （250）	5∽135	7∽115	300

Installation Dimensions

Installation Dimensions for MRH-3150.pdf

FAQ

FAQs

Is the installation dimension of your MRH-3150 hydraulic motor the same as the original motor from JP, and do any modifications need to be made during installation?

Our MRH-3150 hydraulic motor has the same installation dimension as the original motor from JP, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
The MRH-3150 hydraulic motor has identical mounting dimensions to a hydraulic motor manufactured in Japan, confirming they are identical. This ensures compatibility and proper operation of your equipment.
Is the Accessories of your MRH-3150 hydraulic motor interchangeable and compatible with the original one from the JP?

Our MRH-3150 hydraulic motor parts are different from the original parts made in Japan and cannot be used interchangeably.
Although the parts of MRH-3150 hydraulic motor are different from those of Japanese origin, these differences are optimizations and improvements based on actual domestic conditions, giving the product unique advantages in performance, cost and market adaptability.
What about the quality of your MRH-3150 hydraulic motor?

Our MRH-3150 motor has been used and verified for nearly twenty years. It has good performance and high reliability. The probability of quality problems within 12 months of product use is close to.
