Motor for HMKB200

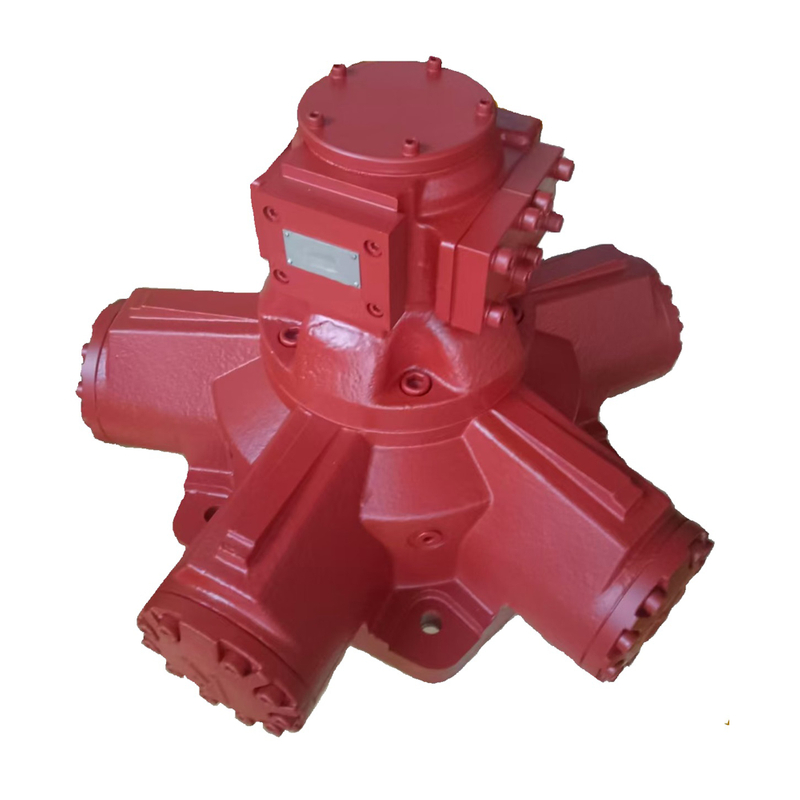

HMKB200 hydraulic motor, Geometric Displacement 3087cm3/r. Rated Pressure 210bar, Rated Power 136KW. Heavy load bearing, the shaft can bear greater Side Load.

Model:
HMKB200

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMKB200 hydraulic motor, Geometric Displacement 3087cm³/r. Rated Pressure 210bar, Rated Power 136KW. Heavy load bearing, the shaft can bear greater Side Load.
The HMKB200 hydraulic motor is an efficient and reliable hydraulic drive device suitable for a variety of heavy equipment and industrial applications. It has excellent performance characteristics and a wide range of applications, making it an important component in the field of hydraulic transmission.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
KB200	3087	45.65	135	165	210	275	136	163

Installation Dimensions

Installation Dimensions for HMKB200 updated.pdf

FAQ

FAQs

Is the installation dimension of your HMKB200 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMKB200 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
Our HMKB200 hydraulic motor is comparable to British-made products in terms of installation dimensions, providing users with a reliable and efficient hydraulic drive solution with a high degree of compatibility and interchangeability.
Is the Accessories of your HMKB200 hydraulic motor interchangeable and compatible with the original one from the UK?

The accessories of our HMKB200 hydraulic motor are same as the original from UK.
The dimensions of all parts of the HMKB200 hydraulic motor are the same as those of parts originating in the UK, reflecting the professionalism and high quality standards in the field of hydraulic technology and providing users with reliable and efficient hydraulic drive solutions.

HMKB200 low voltage iac hydraulic motor low noise iac hydraulic motor marine hatch hydraulic cover motor hydraulic hatch cover actuation motor vessel hydraulic motor for hatch system
