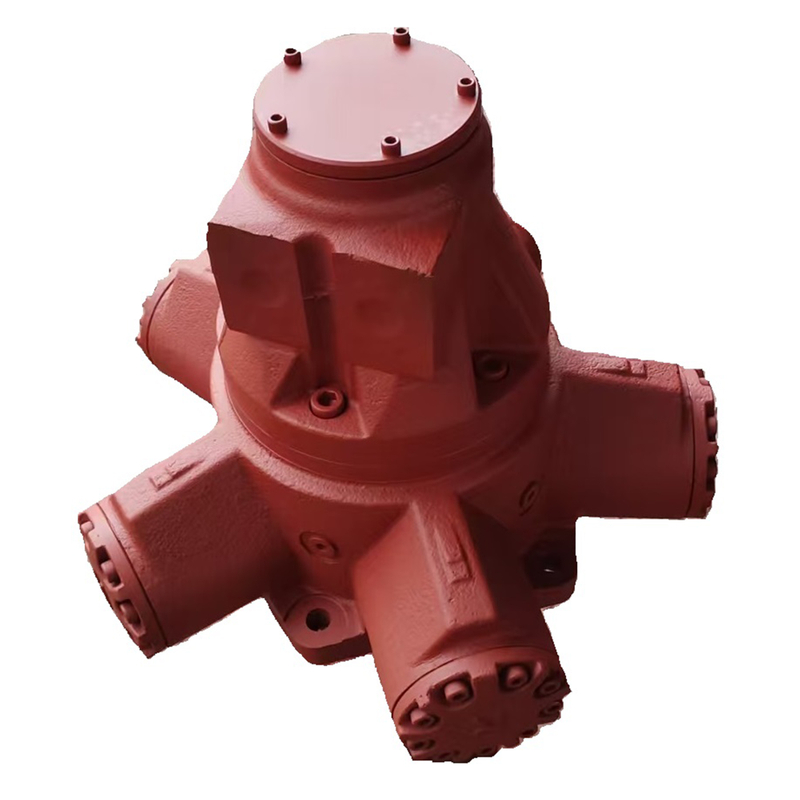

Motor for MRH-750

MRH-750 hydraulic motor, Geometric Displacement 740cm3/r. Rated Pressure 210bar, Rated Power 54KW.

Model:
MRH-750

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

MRH-750 hydraulic motor, Geometric Displacement 740cm³/r. Rated Pressure 210bar, Rated Power 54KW.

The MRH-750 hydraulic motor is a high-pressure, high-efficiency hydraulic power unit featuring an inner-curve, multi-acting design suitable for high-pressure operating ranges. Its compact design, small size, light weight, and low inertia make it easy to install and maintain. The MRH-750 hydraulic motor offers excellent performance characteristics, including high torque, low speed, excellent response speed, and load adaptability. It utilizes high-quality bearings and seals to ensure long-term reliability and durability.

Technical Parameters

MODEL	DISPACEMENT mL/r	MAX. SET PRESSURE Mpa (kgf/cm2）	SPEED RANGE rpm		WEIGHT kg
			at 20.6MPa （210 kgf/cm²）	at 24.5MPa （250 kgf/cm²）
MRH-750	745	24.5 （250）	5∽230	7∽200	140

Installation Dimensions

Installation Dimensions for MRH-750.pdf

FAQ

FAQs

Is the installation dimension of your MRH-750 hydraulic motor the same as the original motor from JP, and do any modifications need to be made during installation?

Our MRH-750 hydraulic motor has the same installation dimension as the original motor from JP, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
It shows that our hydraulic motors have achieved a high level of design, manufacturing, and standardization. This not only ensures compatibility and interchangeability across all equipment, but also simplifies and facilitates installation. Compared to imported products, your hydraulic motors are likely to be competitive in performance, quality, and reliability, and meet customer needs. This consistency helps improve equipment efficiency and production profitability, while also providing customers with a more convenient and economical choice.
Is the Accessories of your MRH-750 hydraulic motor interchangeable and compatible with the original one from the JP?

Our MRH-750 hydraulic motor parts are different from the original parts made in Japan and cannot be used interchangeably.
The MRH-750 hydraulic motor parts are different from those originating in Japan due to production strategy adjustments (including cost considerations and local supply needs), technological development and innovation (domestic technological progress and technology transfer cooperation), and differences in quality control systems (different inspection standards and quality traceability management models).
