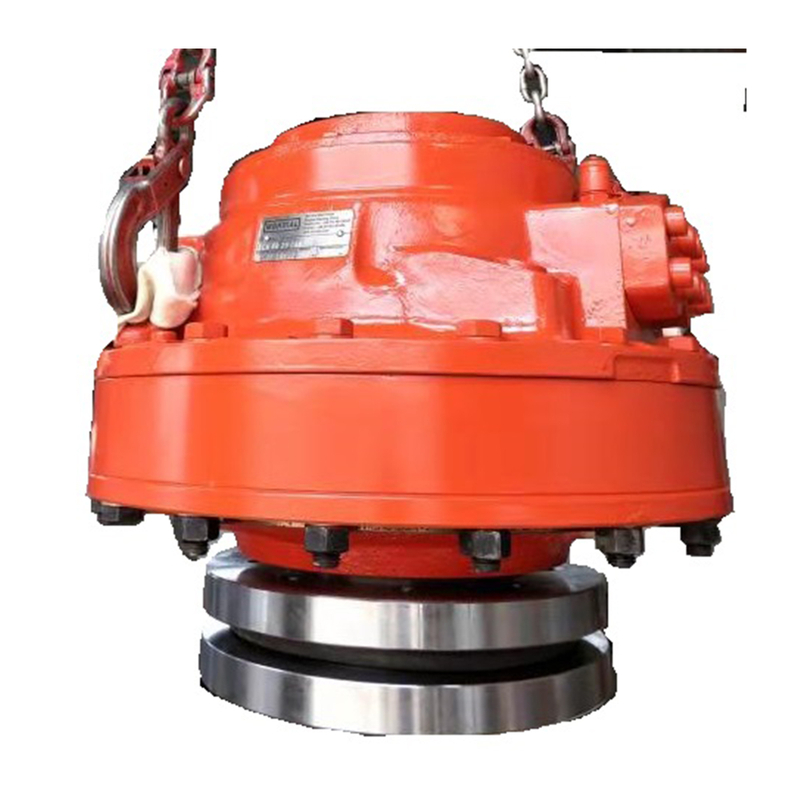

Motor for CA50

CA50 hydraulic motor displacement range 1256-3140 mL/r, rated pressure 280bar, maximum pressure 420bar, maximum power 205 KW, available options include: Internal Spline Connection, Shrink Fit Connection, Viton, Two-Speed, rear- interface, Through Hole, etc.

Model:
CA50

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

CA50 hydraulic motor displacement range 1256-3140 mL/r, rated pressure 280bar, maximum pressure 420bar, maximum power 205 KW, available options include: Internal Spline Connection, Shrink Fit Connection, Viton, Two-Speed, rear- interface, Through Hole, etc.

Technical Parameters

Motor type Metric	FULL DISP.		HALF DISP.		SPEED		PRESSURE		MAX. POWER KW	WEIGHT
Motor type Metric	DISP. mL/r	SPEC. trque N.m/bar	DISP. mL/r	SPEC. trque N.m/bar	Rated. rpm	Max. rpm	Rated. Bar	Max. bar	MAX. POWER KW	spline kg	hollow kg
CA50 20	1256	20	628	10	280	400	280	420	165	192	220
CA50 25	1570	25	785	12.5	245	350	280	420	175
CA50 32	2010	32	1005	16	200	280	280	420	180
CA50 40	2512	40	1256	20	160	230	280	420	185
CA50 50	3140	50	1570	25	140	200	280	420	205

Installation Dimensions

FAQ

FAQs

Is the installation dimension of your CA50 hydraulic motor the same as the original motor from Sweden, and do any modifications need to be made during installation?

Our CA50 hydraulic motor has the same installation dimension as the original motor from Sweden, and it can be used without any modifications.
Is the Accessories of your CA50 hydraulic motor interchangeable and compatible with the original one from the Sweden?

All the Accessories of CA50 hydraulic motor are same as the original from Sweden.
