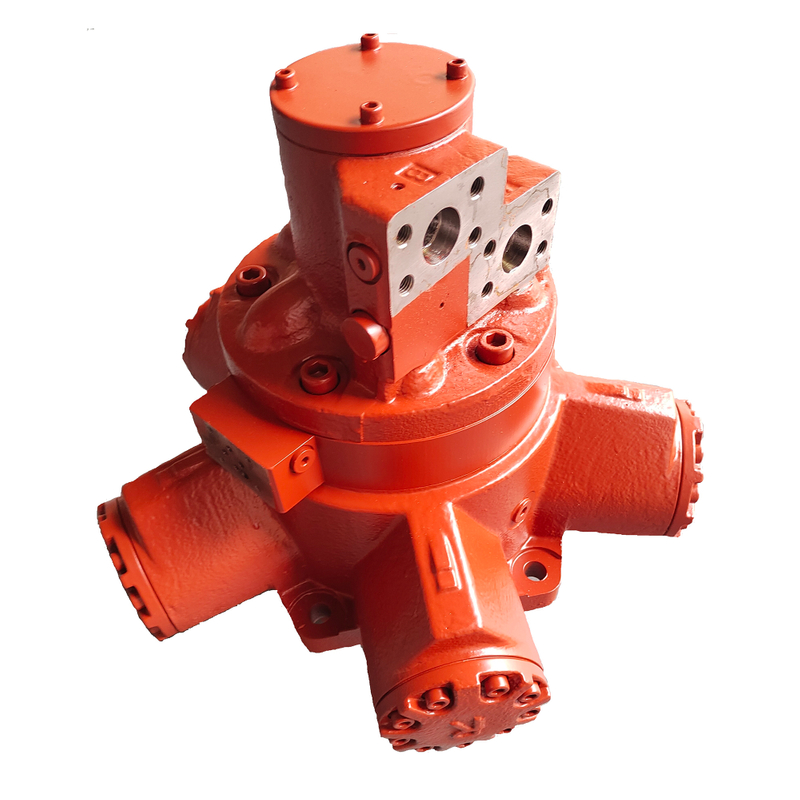

Motor for HMC045

HMC045 two-speed motor has two preset displacements to choose from a wide range to suit specific application requirements. Control and selection is made via directional valve which can be remotely mounted or directly mounted on the motor. The displacement can be easily changed while the motor is running.

Model:
HMC045

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMC045 two-speed motor has two preset displacements to choose from a wide range to suit specific application requirements. Control and selection is made via directional valve which can be remotely mounted or directly mounted on the motor. The displacement can be easily changed while the motor is running.

Technical Parameters

Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	Rated. Rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
C045	45	737	10.66	230	285	210	275	54	65
	40	655	9.32	250	315	210	275	51	61
	35	573	8.02	275	335	210	275	48	58
	30	491	6.75	300	375	210	275	45	53
	25	410	5.54	335	415	210	275	41	49
	20	327	4.34	365	455	210	275	35	42
	15	246	3.21	400	500	210	275	28	34
	10	163	20.9	400	500	210	275	18	22
	5	81	0	800	800	17	17	0	0
	0	0	0	1000	1000	17	17	0	0

Installation Dimensions

Installation Dimensions for HMC045.pdf

FAQ

FAQs

Is the installation dimension of your HMC045 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMC045 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
Is the Accessories of your HMC045 hydraulic motor interchangeable and compatible with the original one from the UK?

Crankshaft (position of the shaft seal), front cover (position of the shaft seal), and shaft seal of our HMC045 hydraulic motor are different the original one from the UK. The rest of all the others Accessories are same as the original from UK.
