Motor for HMB060

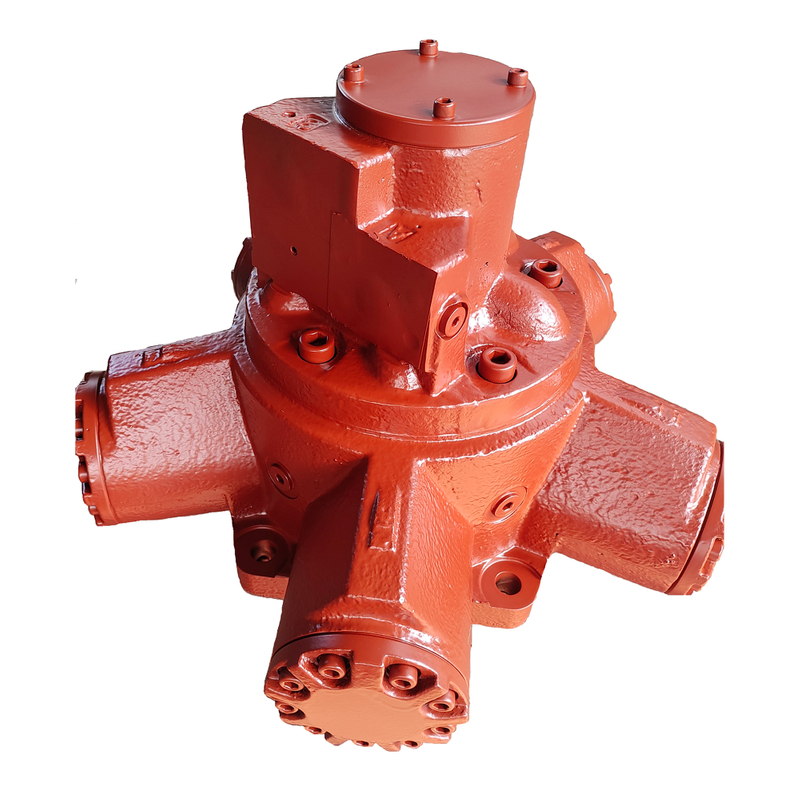

HMB060 hydraulic motor, Displacement 983cm3/r, Rated Pressure 210bar, Rated Power 74KW.

Model:
HMB060

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMB060 hydraulic motor, Displacement 983cm³/r, Rated Pressure 210bar, Rated Power 74KW.

1. High Power: The HMB060 hydraulic motor boasts a high power density, providing high torque and speed, making it suitable for a variety of high-power machinery and equipment.

2. Compact Structure: Utilizing advanced hydraulic technology, it features a compact and compact design, making it easy to install and use.

3. High Reliability: Equipped with overload protection and automatic compensation, it offers high reliability and a long service life.

4. Easy Control: By controlling hydraulic system parameters such as pressure and flow, the hydraulic motor's speed, direction, and output torque can be easily controlled.

5. Various Specifications and Configurations: Hydraulic motors are available in a variety of specifications and configurations to meet diverse power and performance requirements.

6. Compatible with a variety of fluids: The HMB060 hydraulic motor is compatible with a variety of fluids, including hydraulic oil and emulsions, and exhibits excellent adaptability.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
B060	983	13.13	255	315	210	275	74	88

Installation Dimensions

Installation Dimensions for HMB060-080-100.pdf

FAQ

FAQs

Is the installation dimension of your HMB060 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMB060 hydraulic motor is identical with installation dimension from the original motor made in UK, and without any modifications it can be used. All the installation dimensions of the motor will be exactly the same when the model HMB60 is confirmed. Except for the motorcase diameterφ526mm, which is 29mm larger than original UK production.
Is the Accessories of your HMB060 hydraulic motor interchangeable and compatible with the original one from the UK?

Except for Motorcase, Piston, and Con-rod of HMB060 hydraulic motor are different from the original one made in UK. The rest of all the others Accessories are the same.
How many sizes of main ports are available selection for your HMB060 hydraulic motor?

There are five sizes of main port: FM3/S03/SM3/SFM3/FM4.
