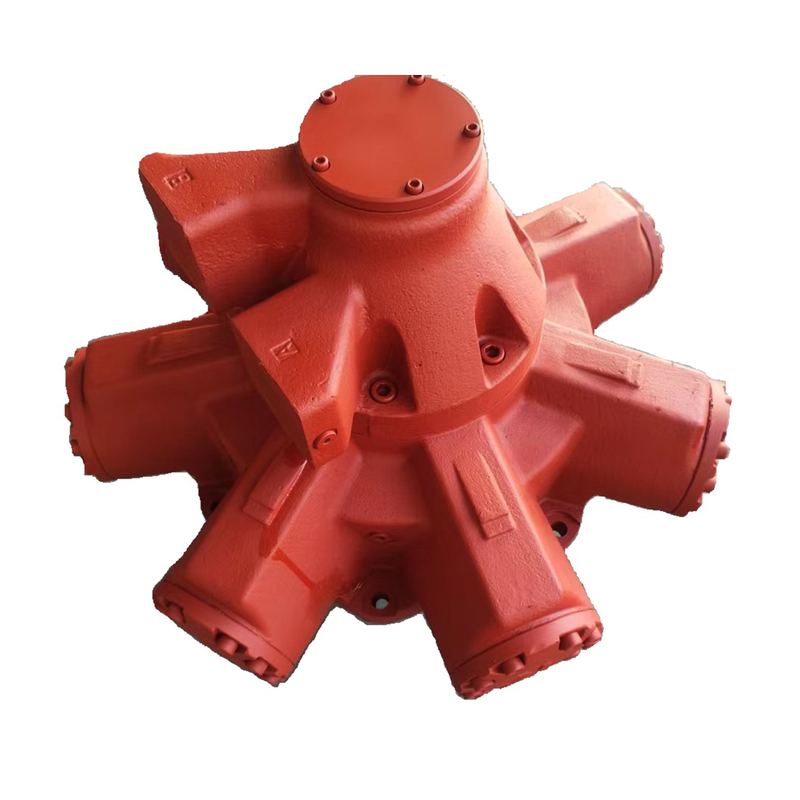

Motor for HMHDB270

HMHDB270 hydraulic motor, standard Displacement 4000cm3/r. Rated Pressure 210bar, Rated Power 149KW. Heavy load bearing, the shaft can bear greater Side Load.

Model:
HMHDB270

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMHDB270 hydraulic motor, standard Displacement 4000cm³/r. Rated Pressure 210bar, Rated Power 149KW. Heavy load bearing, the shaft can bear greater Side Load.

The HMHDB270 hydraulic motor is a high-performance, highly reliable hydraulic power unit suitable for a variety of applications requiring high-performance hydraulic power. Its exceptional performance, efficiency, and durability make it an ideal choice for heavy machinery and equipment.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
HDB270	4310	61.62	110	140	210	275	149	178
HDB270/4000	4000	56.60	120	150	210	275	148	175

Installation Dimensions

Installation Dimensions for HMHDB270-325.pdf

FAQ

FAQs

Is the installation dimension of your HMHDB270 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

There is identical dimensions for Our HMHDB270 hydraulic motor with the original motor from UK, and it can be used without any modifications. When the model is confirmed to be the same, it is the same for all the installation dimensions of the motor. But our HMHDB270 motorcase diameter is the different from the HMB325 motorcase diameter, which is 30mm bigger than the original British HMHDB270 motor.
Is the Accessories of your HMHDB270 hydraulic motor interchangeable and compatible with the original one from the UK?

Our HMHDB270 hydraulic motor motorcase, piston is different from the original British HMHDB270 motor, except for the motorcase and piston，other accessories of our HMHDB270 hydraulic motor are same as the original from UK.
Because the HMHDB270 hydraulic motor was designed with compatibility and interchangeability in mind with hydraulic motors manufactured in the UK, its internal components, such as bearings, gears, seals, and housings, match those of UK-made hydraulic motors in size, specifications, and performance. Therefore, HMHDB270 hydraulic motor parts can be directly replaced and used universally with UK-made hydraulic motors.
What is the performance change of your HMHDB270 motor after using the HMB325 motorcase?

Our HMHDB270 motor used the HMB325 motorcase, and since the length of the motorcase cylinder was 16mm longer the standard, we made the piston the maximum extension, which increased the effective support length of the piston, especially under load impact, and improved withstand the impact， effectively avoiding probability of the motorcase cylinder being torn under impact load, and extending the life of the motor.
