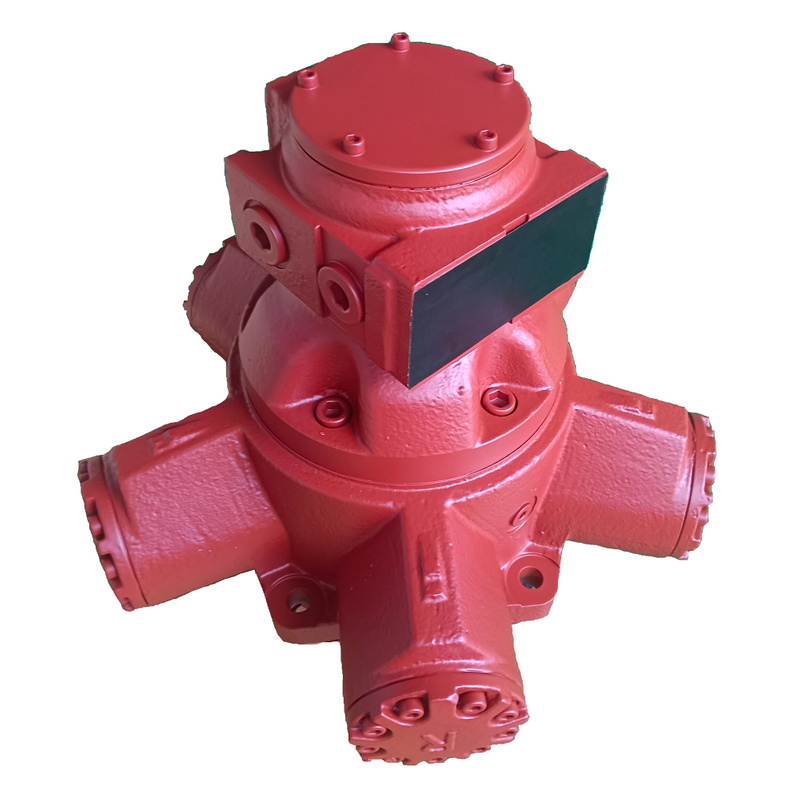

Motor for MRH-1500

MRH-1500 hydraulic motor, Geometric Displacement 1530cm3/r. Rated Pressure 210bar, Rated Power 76KW.

Model:
MRH-1500

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

MRH-1500 hydraulic motor, Geometric Displacement 1530cm³/r. Rated Pressure 210bar, Rated Power 76KW.

The MRH-1500 hydraulic motor is an efficient, flexible, and reliable hydraulic power conversion device suitable for a variety of industries and applications.

Engineering machinery: Used in excavator travel and slewing mechanisms, loaders, and lifting devices.

Mining machinery: Used to drive equipment such as mine hoists and winches.

Shipbuilding industry: Used as a power component in ship propulsion systems or deck machinery.

Industrial automation: Used in some automated production lines to drive specific mechanical components for material conveying, positioning, and other functions.

Technical Parameters

MODEL	DISPACEMENT mL/r	MAX. SET PRESSURE Mpa (kgf/cm2）	SPEED RANGE rpm		WEIGHT kg
			at 20.6MPa （210 kgf/cm²）	at 24.5MPa （250 kgf/cm²）
MRH-1500	1530	24.5 （250）	5∽160	7∽135	180

Installation Dimensions

Installation Dimensions for MRH-1500.pdf

FAQ

FAQs

Is the installation dimension of your MRH-1500 hydraulic motor the same as the original motor from JP, and do any modifications need to be made during installation?

Our MRH-1500 hydraulic motor has the same installation dimension as the original motor from JP, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
This consistency not only simplifies the procurement and installation process, but also improves equipment reliability and performance. Due to the use of the same mounting dimensions, the MRH-1500 hydraulic motor can fully utilize the original design and engineering experience, ensuring it can provide excellent performance and stability under various working conditions.
Is the Accessories of your MRH-1500 hydraulic motor interchangeable and compatible with the original one from the JP?

Our MRH-1500 hydraulic motor parts are different from the original parts made in Japan and cannot be used interchangeably.
In this case, it is recommended to communicate with us to understand the differences in parts and their impact on performance. This will ensure that you understand the overall performance and quality of the product and make corresponding adjustments or improvements as needed.
Can your MRH-1500 hydraulic motor operate without connecting the drain line, and can the shell cavity drain be discharged to the low-pressure of the main line?

Our MRH-1500 hydraulic motor can be equipped with an integrated check valve for low-pressure side drainage, allowing the cavity drain to flow through the low-pressure side of the main line. The hydraulic motor only needs to be connected to two oil pipes for intake and return, eliminating the need for separate drain line.
