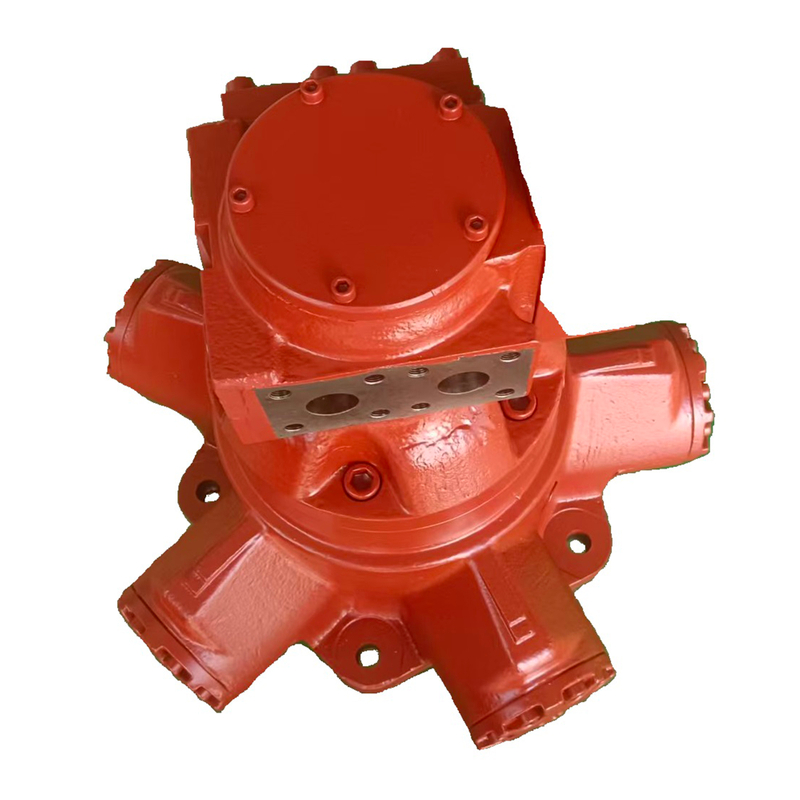

Motor for HMKB100

HMKB100 hydraulic motor, Geometric Displacement 1510cm3/r. Rated Pressure 210bar, Rated Power 75KW. Heavy load bearing, the shaft can bear greater Side Load.

Model:
HMKB100

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMKB100 hydraulic motor, Geometric Displacement 1510cm³/r. Rated Pressure 210bar, Rated Power 75KW. Heavy load bearing, the shaft can bear greater Side Load.

The HMKB100 hydraulic motor is an efficient and reliable hydraulic drive device suitable for various industrial, construction and mechanical fields.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
KB100	1510	21.98	155	195	210	275	75	90

Installation Dimensions

Installation Dimensions for HMKB100.pdf

FAQ

FAQs

Is the installation dimension of your HMKB100 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMKB100 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
It shows that our hydraulic motors adhere to international standards during design and manufacturing, ensuring high compatibility and interchangeability. No special adjustments or modifications are required during installation, ensuring smooth installation and proper operation. This consistency makes it easier for users to find suitable replacements when replacing or repairing hydraulic motors, reducing installation and maintenance time and costs. In short, the HMKB100 hydraulic motor's mounting dimensions are identical to those of its UK origin, providing users with greater convenience and reliability.
Is the Accessories of your HMKB100 hydraulic motor interchangeable and compatible with the original one from the UK?

The accessories of our HMKB100 hydraulic motor are same as the original from UK.
It shows that your hydraulic motor is designed and manufactured using high standards of quality control and compatibility management. All parts are identical in size to their UK origin, ensuring no special adjustments or modifications are required during installation or repair, resulting in smooth installation and efficient operation. This consistency not only improves user convenience but also ensures equipment reliability and performance.
