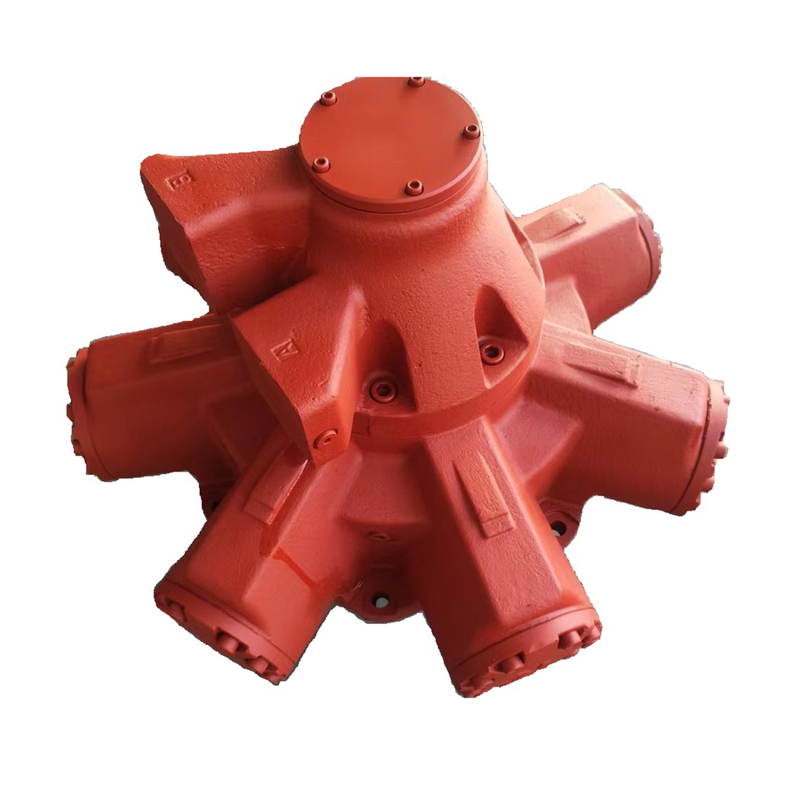

Motor for HMB325

HMB325 hydraulic motor, standard Displacement 5310cm3/r, optional non-standard Displacement5187cm3/r. Rated Pressure 210bar, Rated Power 155KW.

Model:
HMB325

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMB325 hydraulic motor, standard Displacement 5310cm³/r, optional non-standard Displacement5187cm³/r. Rated Pressure 210bar, Rated Power 155KW.

The HMB325 hydraulic motor is a high-performance, reliable, and rugged hydraulic drive unit. It offers excellent power and torque output, making it suitable for a wide range of industrial applications and machinery, providing stable and continuous power output to ensure normal operation and efficient performance.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
B325	5310	78.52	90	110	210	275	155	186
B325/5187	5187	76.28	93	115	210	275	155	186

Installation Dimensions

Installation Dimensions for HMB270-325.pdf

FAQ

FAQs

Is the installation dimension of your HMB325 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMB325 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
The HMB325 hydraulic motor has the same installation dimensions as the original UK, which provides great convenience and advantages for users. It has the characteristics of high performance, reliability and good compatibility, making it an ideal choice for industrial applications and mechanical equipment.
Is the Accessories of your HMB325 hydraulic motor interchangeable and compatible with the original one from the UK?

All accessories of Our HMB325 hydraulic motor are same as the original from UK.
HMB325 hydraulic motor parts are completely interchangeable and universal with parts originating in the UK, which brings great convenience and advantages to users. Users can enjoy high compatibility, easy maintenance, reliability and wide applicability. This advantage makes your hydraulic motor an ideal choice for you
3、What is the maximum drain port pressure that your HMB hydraulic motor shaft seal can withstand?

All our HMB hydraulic motors are equipped with a high-pressure shaft seal, with a maximum pressure resistance of 10 bar, and all our HMB hydraulic motors are equipped with SKF shaft sleeve.
