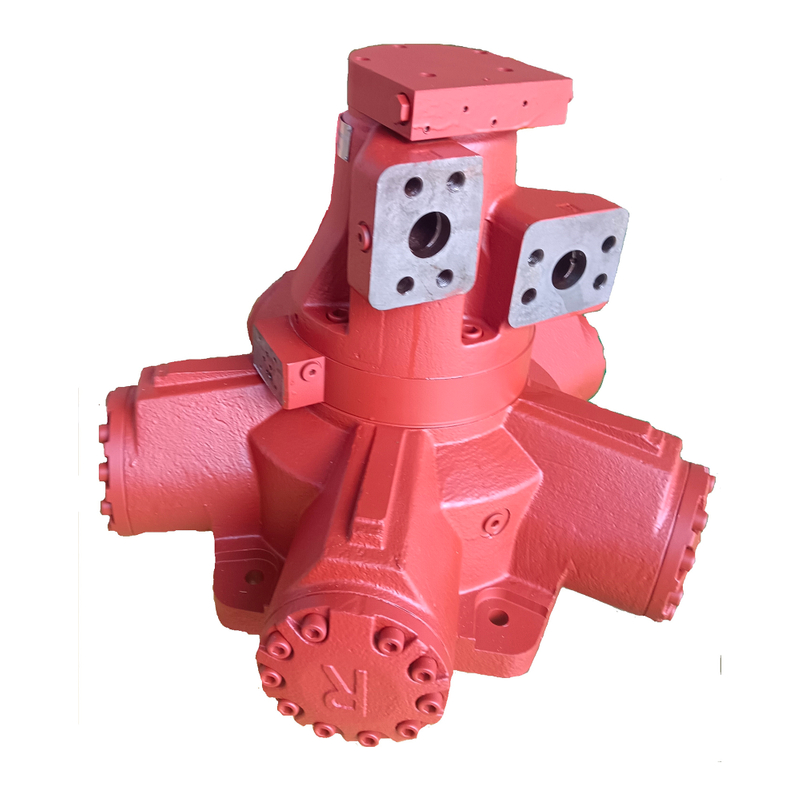

Motor for HMC200

HMC200 two-speed motor has two preset displacements , high torque, low speed radial piston motors use hydro static balancing techniques to achieve high efficiency, combined with good breakout torque and smooth running capability. These motors are also available in a continuously variable version using either hydro-mechanical or electro hydraulic control methods. Other mounting options are available on request to match many of the competitor interfaces.

Model:
HMC200

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

Technical Parameters

Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	Rated. Rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
C200	188	3087	45.65	135	165	210	275	136	163
	180	2950	43.15	140	170	210	275	133	159
	170	2790	40.37	148	175	210	275	131	158
	160	2620	37.49	155	185	210	275	128	153
	150	2460	34.42	165	200	210	275	125	150
	140	2290	31.68	175	210	210	275	122	146
	130	2130	29.13	185	225	210	275	119	142
	120	1970	26.62	200	240	210	275	117	140
	110	1800	24.04	215	260	210	275	114	136
	100	1639	21.63	235	280	210	275	112	134
	90	1475	19.23	260	310	210	275	110	132
	80	1311	16.88	290	350	210	275	108	129
	70	1147	14.59	330	395	210	275	106	127
	60	983	12.35	380	475	210	275	103	124
	50	820	10.17	400	500	210	275	89	107
	40	655	8.02	400	500	210	275	71	85
	30	492	5.95	400	500	210	275	52	63
	20	328	3.91	400	500	210	275	34	41
	10	164	1.93	400	500	210	275	17	20
	5	82	0	800	800	17	17	0	0
	0	0	0	1000	1000	17	17	0	0

Installation Dimensions

Installation Dimensions for HMC200.pdf

FAQ

FAQs

Is the installation dimension of your HMC200 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMC200 hydraulic motors have identical mounting dimensions to those manufactured in the UK. Not only do they share the same mounting dimensions as their UK counterparts, but they also feature enhanced sealing, control, and durability features, making them an ideal choice for domestic replacement, spare parts replacement, and complete machine upgrades. We truly deliver on the promise of "remove the old, install the new, and you're ready to go"—without any additional cost or risk.
Are your HMC200 hydraulic motor parts universal with those original one in the UK?

Our HMC200 hydraulic motor not only has the same installation dimensions as the original British Staffa HMC200, but also has all internal and external parts that are 100% interchangeable.
The new motor, after installation, shows obvious lack of power when lifting the load or at times, and it is obviously not as powerful as before. Is there a with the quality of the motor?

If it is a new motor, the motor rotates in the correct direction, and there is no occurrence of anchor slipping or uncontrollable speed during the trial operation, the reasons for the obvious lack of motor power are as follows:
a.Motor displacement error, the new motor displacement is smaller than the original design motor displacement, judge whether the motor displacement is incorrect or smaller than the design displacement: a conclusion can be drawn after excluding the reasons and possibilities of b and c;
b.The motor itself has quality faults, and the mechanical efficiency is significantly low. To determine whether there is a quality problem with the motor, refer to “How to quickly determine if there is a fault with the motor or the control valve group?”
c.The relief valve in the control valve manifold has contaminants or the relief valve spring is broken. To determine whether there is a quality problem with the valve, refer to “How to quickly determine if there is a fault with the motor or the control valve group?”
