Motor for HMHDB150

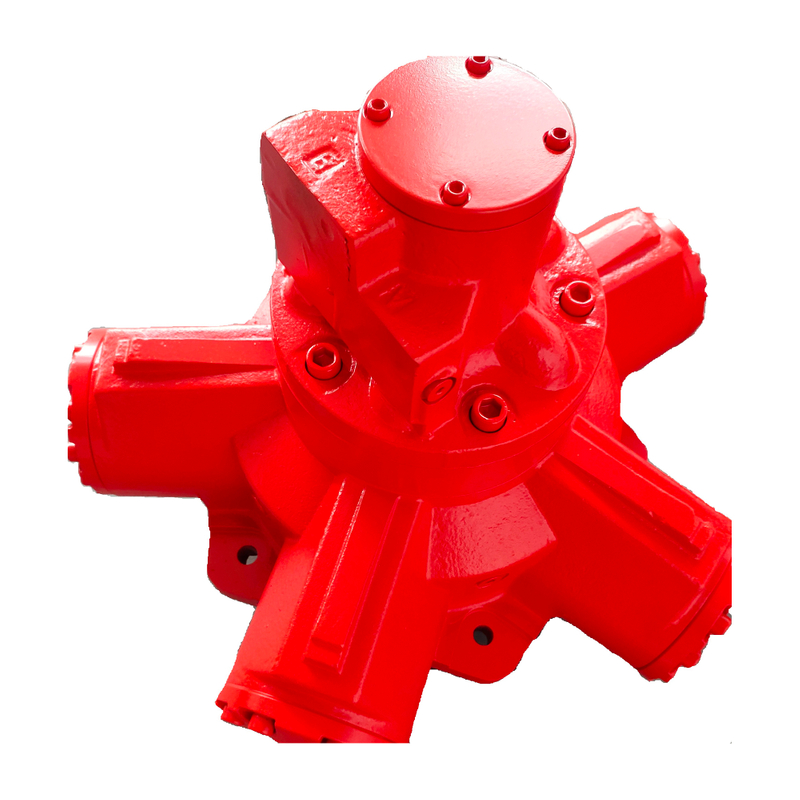

HMHDB150 hydraulic motor, standard Displacement 2470cm3/r, optional non-standard Displacement 2130 cm3/r. 1880cm3/r. Rated Pressure 210bar, Rated Power 125KW.
Heavy load bearing, the shaft can bear greater Side Load.

Model:
HMHDB150

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMHDB150 hydraulic motor, standard Displacement 2470cm³/r, optional non-standard Displacement 2130 cm³/r. 1880cm³/r. Rated Pressure 210bar, Rated Power 125KW.

Heavy load bearing, the shaft can bear greater Side Load.

HMHDB150 hydraulic motor is an efficient and stable hydraulic power conversion device, suitable for various heavy machinery and equipment, with broad application prospects.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
B150	2470	34.42	165	190	210	275	125	150
B150/2130	2130	29.13	185	220	210	275	119	142
B150/1880	1880	25.7	210	250	210	275	119	142

Installation Dimensions

Installation Dimensions for HMHDB150-200.pdf

FAQ

FAQs

Is the installation dimension of your HMHDB150 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMHDB150 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
This means that compatibility and interchangeability with original UK hydraulic motors were fully considered during the design and manufacturing process, ensuring the same mounting dimensions and interface standards. This allows equipment using the HMHDB150 hydraulic motor to be easily repaired and upgraded without requiring any structural modifications, reducing maintenance costs and downtime. This also demonstrates the HMHDB150 hydraulic motor's high standards of performance, quality, and reliability, capable of meeting the demands of a variety of demanding industrial applications. In short, the HMHDB150 hydraulic motor has identical mounting dimensions to its UK origin, providing users with a more convenient and reliable hydraulic power solution.
Is the Accessories of your HMHDB150 hydraulic motor interchangeable and compatible with the original one from the UK?

The accessories of our HMHDB150 hydraulic motor are same as the original from UK.
This means that during the design and manufacturing process, the HMHDB150 hydraulic motor not only matched its overall installation dimensions with those of UK-made hydraulic motors, but also its internal components' dimensions, specifications, and performance. This consistency ensures the HMHDB150 hydraulic motor's high compatibility and interchangeability with UK-made hydraulic motors, making repairs and parts replacements more convenient without requiring any structural modifications to the equipment. It also demonstrates the high standards of manufacturing precision and quality control for the HMHDB150 hydraulic motor. The consistent dimensions of all parts ensure the motor's performance, reliability, and lifespan, meeting the demands of a wide range of industrial applications. In short, all parts of the HMHDB150 hydraulic motor are identical in size to those of its UK origin, providing users with a high-quality, reliable hydraulic power solution.
How many kinds of shaft seal does the HMB series hydraulic motor have?

There are four kinds of shaft seal for HMB series hydraulic motors：
Shaft seal of HMB045: 2.5 inches
Shaft seal of HMB060/HMB080/HMB100: 2.75 inches
Shaft seal of HMB125/HMB150/HMB200: 3.5 inches
Shaft seal of HMHDB125/HMHDB150/HMHDB200/HMB270/HMB325/HMHDB400: 4 inches.
