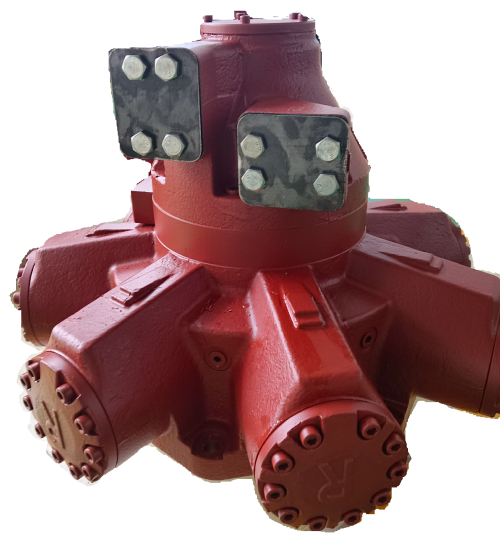

HMC325 low-speed drive radial piston hmb motor

HMC325 two-speed motor has two preset displacements to choose from a wide range to suit specific application requirements. Control and selection is made via directional valve which can be remotely mounted or directly mounted on the motor. The displacement can be easily changed while the motor is running.
HMC325 hydraulic motor is a specific type of hydraulic motor produced by Bosch Rexroth, a German company specializing in the production of hydraulic and electronic components for industrial automation and mobile applications.

Model:
HMC325

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMC325 is a high-pressure, constant-pressure, axial piston motor that is typically used in hydraulic systems to convert hydraulic energy into mechanical energy.Key features of the HMC325 hydraulic motor include:

1. High pressure capability: HMC325 can operate at pressures up to 350 bar (5100 psi), making it suitable for use in high-pressure hydraulic systems.

2. Constant pressure output: The motor maintains a constant output pressure regardless of the load, which helps to ensure stable operation and efficient energy use.

3. Compact design: HMC325 is designed for compact installation in hydraulic systems, with a low axial and radial dimension

4. High efficiency: The motor is designed for high efficiency and low energy consumption, making it an economical choice for hydraulic applications.

5. Wide range of sizes and configurations: HMC325 is available in a variety of sizes and configurations to suit different application requirement

HMC325 hydraulic motor is commonly used in industrial machinery, construction equipment, and other applications where high pressure and constant pressure output are required. It is also commonly used in combination with other Bosch Rexroth products such as pumps, valves, and controls to create complete hydraulic systems.

Technical Parameters

Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	Rated. Rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
C325	325	5326	78.76	90	110	210	275	156	187
	310	5080	74.31	95	118	210	275	155	186
	300	4916	71.13	98	122	210	275	153	184
	280	4588	65.65	105	130	210	275	152	182
	250	4097	57.33	115	145	210	275	145	174
	220	3605	49.87	130	162	210	275	143	171
	200	3277	44.81	140	175	210	275	138	166
	180	2950	39.87	155	193	210	275	136	163
	160	2622	35.02	175	218	210	275	135	162
	140	2294	30.27	200	250	210	275	133	160
	120	1966	25.63	230	288	210	275	130	156
	100	1639	21.11	275	340	210	275	128	153
	90	1557	19.81	290	360	210	275	126	152
	80	1311	16.47	340	425	210	275	123	148
	60	983	12.19	350	435	210	275	94	113
	40	655	8.02	350	435	210	275	62	74
	30	492	5.95	350	435	210	275	46	55
	20	328	3.91	350	435	210	275	30	36
	10	164	0	800	800	17	17	0	0
	0	0	0	1000	1000	17	17	0	0

Installation Dimensions

Installation Dimensions for HMC270-325.pdf

FAQ

FAQs

1. Is the installation dimension of your HMC325 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMC325 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
When replacing an existing motor with an HMC325, it is important to ensure that the hydraulic system is compatible with the new motor's specifications, including pressure, flow rate, and rotational speed. It is also important to follow proper installation procedures to ensure proper operation and long-term reliability of the motor.If you are unsure about compatibility or need assistance with installating, it is recommended to consult with a qualified hydraulic technician or the manufacturer's technical support team. They can provide guidance on selecting the right motor for your application and ensure proper installation and operation of the HMC325 hydraulic motor.
Is the Accessories of your HMC325 hydraulic motor interchangeable and compatible with the original one from the UK?

The accessories of our HMC325 hydraulic motor are same as the original from UK.
Common accessories for the HMC325 hydraulic motor include:
1.Motor shaft seals: These are used to prevent leakage of hydraulic fluid and to protect the motor bearings from contamination.
2.Oil level sight glasses: These allow for visual inspection of the oil level in the motor, helping to ensure proper lubrication and operation.
3.Breather valves: These are used to allow air to escape from the motor during operation, preventing damage caused by excessive pressure or vacuum.
4.Motor covers: These are used to protect the motor from dust, dirt, and other contaminants, helping to ensure long-term reliability and performance.
It is important to regularly inspect and maintain the accessories on your HMC325 hydraulic motor to ensure proper operation and long-term reliability. If any accessories are damaged or missing, they should be replaced as soon as possible to prevent further damage to the motor or hydraulic system.If you need assistance with selecting or replacing accessories for your HMC325 hydraulic motor, it is recommended to consult with a qualified hydraulic technician or the manufacturer's technical support team. They can provide guidance on selecting the right accessories for your application and ensure proper installation and operation of the motor.

radial piston hmb motor HMC325 motor HMC325 hmc motor dual displacement radial piston hmc motor hydraulic hmc motor hmc motor for winch hmc motor for crane hmc motor for excavator for drilling rig hmc motor
