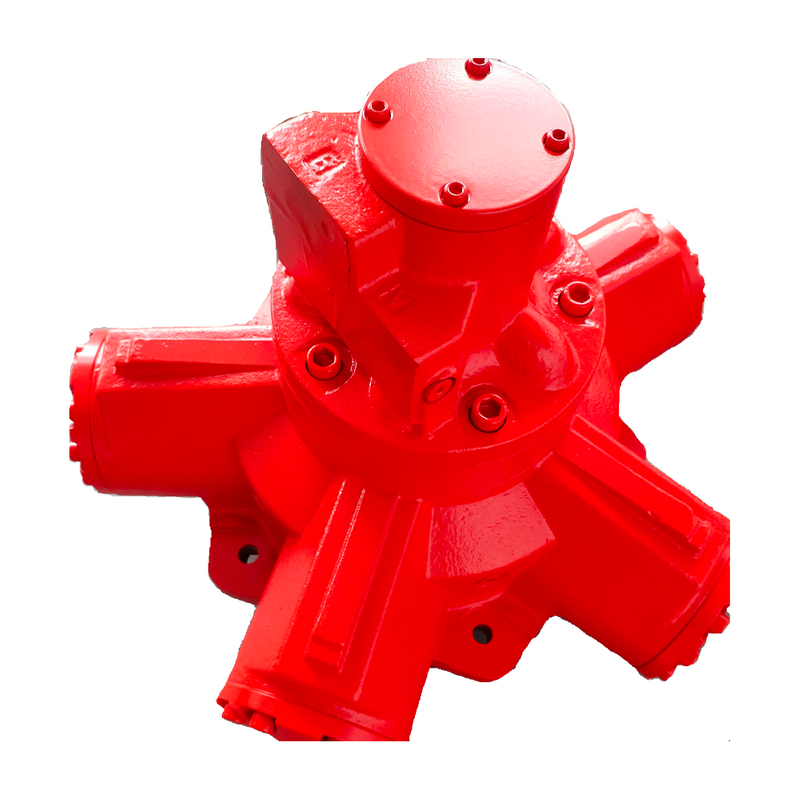

Motor for HMB150

HMB150 hydraulic motor, standard Displacement 2470cm3/r, optional non-standard Displacement 2130 cm3/r. 1880cm3/r. Rated Pressure 210bar, Rated Power 125KW.

Model:
HMB150

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

HMB150 hydraulic motor, standard Displacement 2470cm³/r, optional non-standard Displacement 2130 cm³/r. 1880cm³/r. Rated Pressure 210bar, Rated Power 125KW.

HMB150 hydraulic motor is an efficient and reliable hydraulic power component, usually used in various types of construction machinery, forest machinery, mining machinery and other equipment running or working device.

Technical Parameters

Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Geometric displacement mL/r	Average actual running torque (Nm/bar)	Rated. rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
B150	2470	34.42	165	190	210	275	125	150
B150/2130	2130	29.13	185	220	210	275	119	142
B150/1880	1880	25.7	210	250	210	275	119	142

Installation Dimensions

Installation Dimensions for HMB150-200.pdf

FAQ

FAQs

Is the installation dimension of your HMB150 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMB150 hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
This is extremely convenient for users. When upgrading equipment, replacing hydraulic motors, or selecting new equipment, users no longer have to worry about installation compatibility issues. The existing installation structure and layout can be retained, saving the time and cost of redesigning and adjusting the installation space. This also demonstrates the standardization and versatility of this hydraulic motor's design and manufacturing, which will facilitate its wider market application and promotion. It can be better integrated into various hydraulic systems, both domestically and internationally, providing a stable and reliable power conversion component for the development of related industries.
Is the Accessories of your HMB150 hydraulic motor interchangeable and compatible with the original one from the UK?

Whether the HMB150 hydraulic motor is produced domestically or manufactured in the UK, its key components have the same specifications, dimensions and performance, and can be seamlessly replaced without the need for special adaptation or modification.
The accessories of our HMB150 hydraulic motor are same as the original from UK.
How many kinds of piston rings does the HMB series hydraulic motor have?

There are 2 kinds of piston rings for HMB series hydraulic motors, which are 3.125 inches and 4 inches. Piston rings of the same size can be interchanged and used in general.
Piston diameter of HMB045/HMB060/HMB080/HMB100: 3.125 inches:
Piston diameter:of HMB125/HMB150/HMB200/HMB270/HMB325/HMHDB400 : 4 inches
