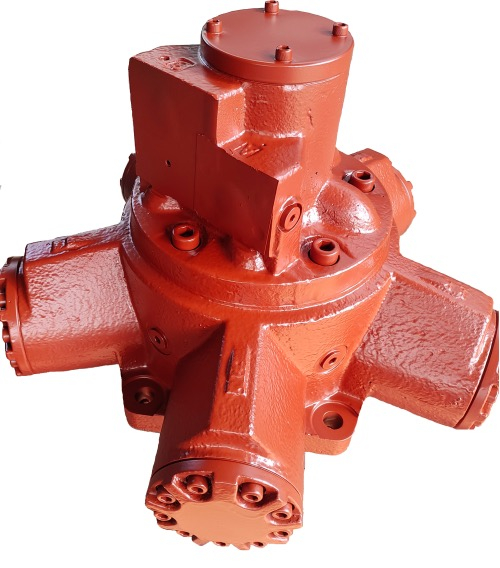

HMHDB200 Reliable Performance Motor Replacement

Typical applications

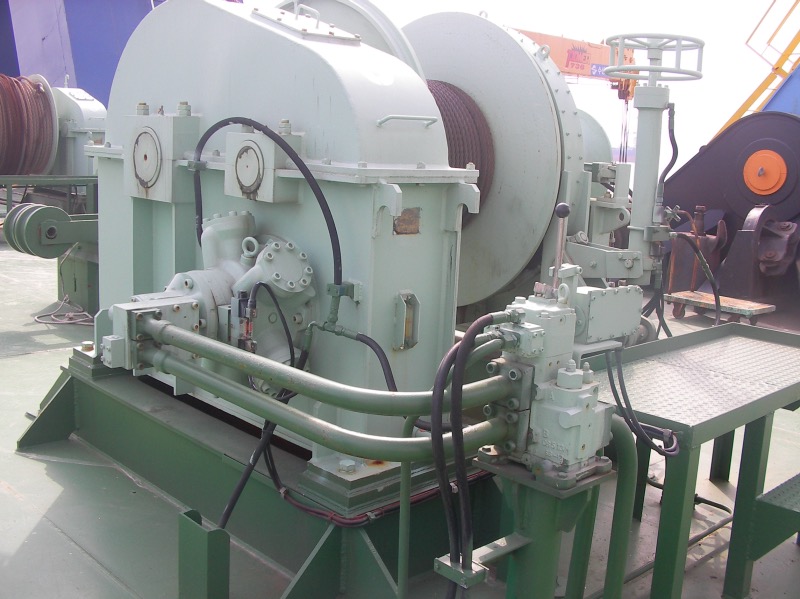

Heavy‑duty marine mooring winches, anchor‑handling winches, offshore deck machinery, dredger drives, high‑shock industrial winches. Direct‑drive winch drum configuration; heavy‑duty shaft‑bearing absorbs large drum radial loads. Preferred for vessels with frequent reversing and heavy impact loads.

Design features

1. Hydrostatic‑balanced piston‑shoe assembly, excellent zero‑speed break‑away torque, smooth low‑speed rotation

2. Reinforced heavy‑duty shaft & bearing set for high radial and impact loads

3. Fixed displacement only; no internal free‑wheel function

4. Robust cast housing, marine‑grade paint for salt‑spray environment

Common failure & service notes

1. Case drain back‑pressure >5 bar: Top failure cause for Staffa series; leads to shaft seal blow‑out, accelerated internal wear, efficiency drop. Always monitor drain back‑pressure.

2. Cavitation damage during overrunning winch lowering: boost‑pressure circuit is mandatory.

3. Shaft seal leakage: common marine wear‑item; replace complete heavy‑duty seal kit during overhaul.

4. Shock pressure spikes: system relief valve shall limit intermittent pressure ≤300 bar.

5. Spare‑parts warning: HMHDB200 internal heavy‑duty components cannot be replaced with standard HMB200 parts.

Standard spare‑parts list

• Complete heavy‑duty seal kit (shaft seal, O‑rings, backup rings)

• HMHDB‑spec piston‑shoe assemblies

• Reinforced cam‑ring

• Distributor / valve plate

• Heavy‑duty output‑shaft bearing set

Interchange & cross‑reference

• OEM: Kawasaki Precision Machinery (Staffa)

• Aftermarket rebuilt / drop‑in replacement available. Before ordering verify:

1. Exact flange dimension (FM3 / FM4 etc.)

2. Shaft type & dimension (HMHDB‑T shaft geometry different from HMB200‑T)

3. Port configuration (FM3 / SO3 / SO4)
