HMHDB125 Compact Industrial Motor

Port layout

• A / B: Bi‑directional high‑pressure main working ports

• C: Crankcase drain port — must route directly back to tank with minimal back‑pressure (<5 bar). Drain connection should be above motor horizontal centre‑line. Vertical shaft‑up installation requires extra check‑valve arrangement to prevent oil starvation.

No built‑in free‑wheel valve. If gravity pay‑out / free‑run function needed, external free‑wheel manifold must be fitted.

Typical applications

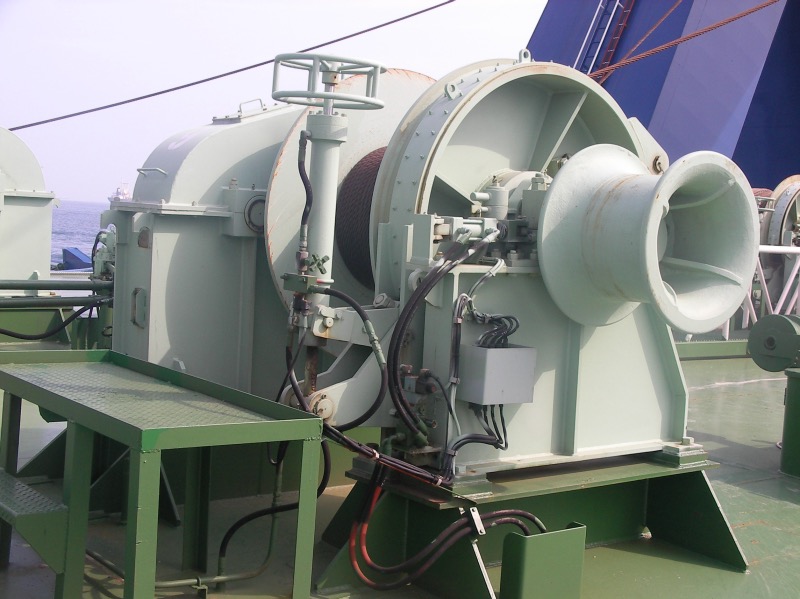

• Heavy‑duty marine mooring winches, anchor handling winches, offshore deck machinery, dredger drives, high‑shock industrial winches.

• Direct‑drive winch drum arrangement; heavy‑duty shaft‑bearing absorbs huge drum radial loads. Preferred for vessel with frequent reversing, shock‑loading operation.




Design features

1. Hydrostatic balanced piston‑shoe design, excellent break‑away torque at zero speed, smooth low‑speed rotation

2. Reinforced heavy‑duty shaft & bearing set for high radial & impact loads

3. Fixed displacement only; no internal free‑wheel function

4. Robust cast housing for salt‑spray marine environment

Common failure & service notes

1. Case drain back‑pressure >5 bar: Shaft seal blow‑out, accelerated internal wear, efficiency drop. This is the top failure cause for Staffa HMB / HMHDB series.

2. Cavitation damage during winch lowering over‑running load: boost pressure circuit required.

3. Shaft seal leakage: common marine service item; replace full seal kit during overhaul.

4. Shock pressure spikes: system relief valve shall limit intermittent pressure ≤293 bar.

5. Spare parts warning: HMHDB internal parts (shaft, bearing, cam‑ring) are NOT interchangeable with standard HMB125, even displacement is same.

Standard spare‑parts list

• Complete heavy‑duty seal kit (shaft seal, O‑rings, backup rings)

• HMHDB‑spec piston‑shoe assemblies

• Reinforced cam‑ring

• Distributor / valve plate

• Heavy‑duty output‑shaft bearing set

Interchange & cross‑reference

• OEM: Kawasaki Precision Machinery (Staffa)

• Aftermarket rebuilt / drop‑in replacement available. Before ordering verify:

1. Exact flange dimension (FM3 / FM4 etc.)

2. Shaft type & dimension (HMHDB‑T shaft geometry different from HMB125‑T)

3. Port configuration
