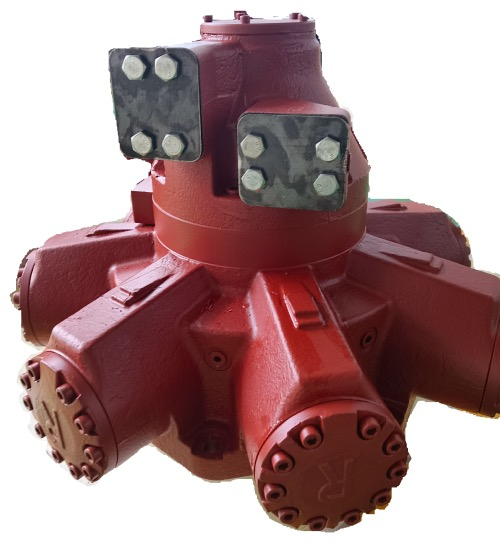

HMC325 Precision Motor for Reliable Performance

HMC325 Precision Motor for Reliable Performance

HMC325 two-speed motor has two preset displacements to choose from a wide range to suit specific application requirements. Control and selection is made via directional valve which can be remotely mounted or directly mounted on the motor. The displacement can be easily changed while the motor is running.

Model:
HMC325

Quantity:
Availability:





Inquire Add to Basket

Product Introduction

Key Features

Dual / two-speed displacement: Hydraulically switch between large displacement (low speed, high torque) and small displacement (high speed, low torque) while motor is running. The shift valve can be mounted on motor body or remotely controlled.
Radial piston hydrostatic balancing: Excellent breakout / starting torque, smooth rotation, high mechanical efficiency and long service life.
Multiple options: built-in brake, various flanges, shaft configurations, seal materials, freewheel function and constant horsepower control available.

Typical Applications

Marine: large deck winches, anchor windlasses, marine cranes, trawl winches

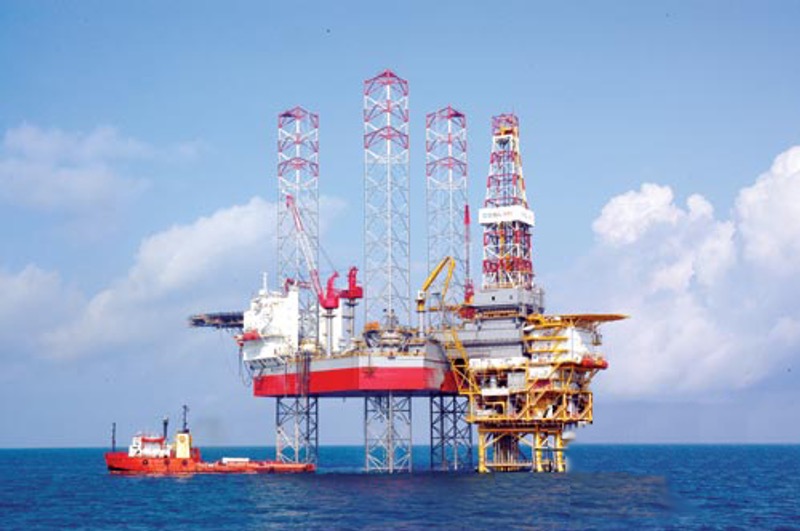

Offshore & mining: heavy slewing drives, large winches, crawler wheel drives
Industrial: heavy duty rotating equipment, shredders, large conveyors

Model Code Example

HMC325 / P2 / FM3 / CS / 325

HMC325: frame model
P2: mounting flange
FM3: bearing & speed class
CS: seal + integral brake assembly
325: displacement code

Technical Parameters

Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	SPEED		PRESSURE		OUTPUT POWER
Motor type Metric	Disp. Code	Disp. mL/r	Spec. Torque N.m/bar	Rated. Rpm	Max. rpm	Rated. bar	Max. bar	Rated. KW	Max. KW
C325	325	5326	78.76	90	110	210	275	156	187
	310	5080	74.31	95	118	210	275	155	186
	300	4916	71.13	98	122	210	275	153	184
	280	4588	65.65	105	130	210	275	152	182
	250	4097	57.33	115	145	210	275	145	174
	220	3605	49.87	130	162	210	275	143	171
	200	3277	44.81	140	175	210	275	138	166
	180	2950	39.87	155	193	210	275	136	163
	160	2622	35.02	175	218	210	275	135	162
	140	2294	30.27	200	250	210	275	133	160
	120	1966	25.63	230	288	210	275	130	156
	100	1639	21.11	275	340	210	275	128	153
	90	1557	19.81	290	360	210	275	126	152
	80	1311	16.47	340	425	210	275	123	148
	60	983	12.19	350	435	210	275	94	113
	40	655	8.02	350	435	210	275	62	74
	30	492	5.95	350	435	210	275	46	55
	20	328	3.91	350	435	210	275	30	36
	10	164	0	800	800	17	17	0	0
	0	0	0	1000	1000	17	17	0	0

Installation Dimensions

Installation Dimensions for HMC270-325.pdf

FAQ

FAQs

1. Is the installation dimension of your HMC325 hydraulic motor the same as the original motor from UK, and do any modifications need to be made during installation?

Our HMC325hydraulic motor has the same installation dimension as the original motor from UK, and it can be used without any modifications. As long as the model is confirmed to be the same, all the installation dimensions of the motor will be exactly the same as this.
Is the Accessories of your HMC325 hydraulic motor interchangeable and compatible with the original one from the UK?

The accessories of our HMC325 hydraulic motor are same as the original from UK.

HMC325 HMC325 motor HMC325 hydraulic motor cargo hatch cover hydraulic motor marine hatch lifting hydraulic motor hydraulic hatch cover handling motor marine deck hydraulic hatch motor hatch cover heavy-duty hydraulic motor hydraulic hatch motion motor for ships hydraulic motor for hatch lifting system
