CA50
| Quantity: | |
|---|---|
Product Introduction

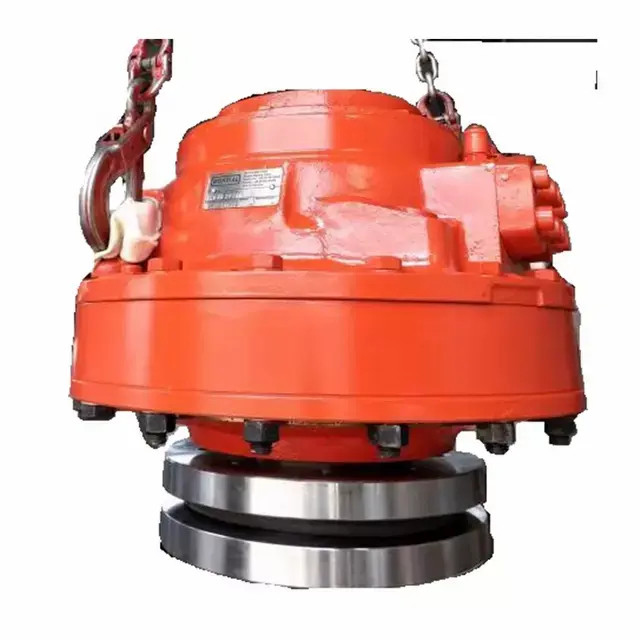

Tianshu CA50 is low‑speed high‑torque radial piston hydraulic motor, fully interchangeable with original Hagglunds CA50 series, same mounting dimension, hollow through‑shaft interface for direct drop‑in replacement.
CA50 hydraulic motor displacement range 1256-3140 mL/r, rated pressure 280bar, maximum pressure 420bar, maximum power 205 KW, available options include: Internal Spline Connection, Shrink Fit Connection, Viton, Two-Speed, rear- interface, Through Hole, etc.
Modular stacked construction: base motor, multi‑disc parking brake, speed sensor and tandem drive kits are optional modules, flexible configuration for different working conditions.
Built‑in multi‑disc hydraulic brake with manual release function for safety holding under static load.
High‑strength alloy steel cam‑roller radial piston mechanism, excellent resistance to heavy shock and impact load. Low moment of inertia, quick response for frequent forward‑reverse switching.
High‑temperature fluorine rubber sealing components, suitable for mineral hydraulic oil; operating temperature:‑30℃ ~ +120℃Alibaba.co....
Multiple port arrangements, torque‑arm mounting interfaces fully match original Hägglunds drawing.
Mining equipment: underground scraper conveyor, coal mine shearer feeder, crusher drive
Marine & offshore: deck winch, anchor winch, ship‑board heavy rotation drive
Tunneling machinery: shield machine auxiliary rotation, material conveying system
Heavy‑duty industry: rubber & plastic calender / mixer, paper pulp agitator, steel mill roller drive, waste shredder main drive
Technical Parameters
Motor type | FULL DISP. | HALF DISP. | SPEED | PRESSURE | MAX. | WEIGHT | |||||
DISP. | SPEC. trque | DISP. | SPEC. trque | Rated. | Max. | Rated. | Max. | spline | hollow | ||
CA50 20 | 1256 | 20 | 628 | 10 | 280 | 400 | 280 | 420 | 165 | 192 | 220 |
CA50 25 | 1570 | 25 | 785 | 12.5 | 245 | 350 | 280 | 420 | 175 | ||
CA50 32 | 2010 | 32 | 1005 | 16 | 200 | 280 | 280 | 420 | 180 | ||
CA50 40 | 2512 | 40 | 1256 | 20 | 160 | 230 | 280 | 420 | 185 | ||
CA50 50 | 3140 | 50 | 1570 | 25 | 140 | 200 | 280 | 420 | 205 | ||
Installation Dimensions
