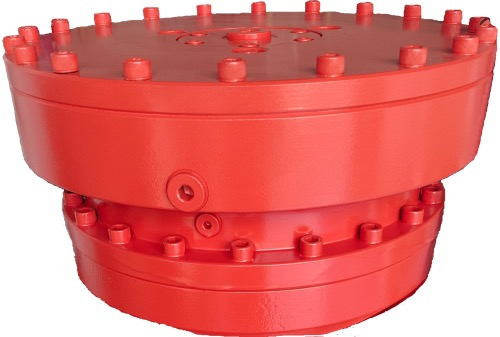

BICA High-Efficiency Brake System

BICA brake belongs to dry braking system, suitable for hydraulic motor of CA series, which can be connected in series with the hydraulic motor of CA series, braking range 12800N.m-42700N.m.

BICA brake is a hydraulically actuated, normally closed disc brake designed specifically for industrial equipment (such as cranes, elevators, metallurgical machinery, and construction machinery). It features high braking torque, fast response, and a compact design. Its core application is in safety braking systems for dual-speed motors (such as the HMJC125). It quickly locks the output shaft when the motor stops, preventing the equipment from slipping or moving unexpectedly.

BICA brake is a high-performance, high-precision hydraulic brake suitable for a variety of industrial applications requiring fast response and precise control. It is highly regarded by users for its powerful braking torque, excellent precision, superior heat dissipation, safety, reliability, and ease of maintenance.

The BICA brake is a drytype, springapplied multidisc parking brake, engineered by Hägglunds for pairing with CAseries hydraulic motors (including your CA70 motor), Quantum and CBm motorsmysolution...。

Important note: BICA is for static parkinghold duty only. NOT for dynamic stopping or suspended hangingload applicationsmysolution....

Working principle

· Brake ON (parking): Springs squeeze the friction discs together, locks the shaft mechanically. No hydraulic pressure required (failsafe).

· Brake OFF (released): External hydraulic pressure pushes against the springs, separates the disc stack so the motor shaft can rotate freely.

· Manual emergency release function is builtin for service/maintenance workmysolution....

Key specifications

· Braking torque range: 13 kNm ~ 160 kNm (multiple frame sizes: BICA037, BICA064 etc.)mysolution...

· Release pressure: typical 2550 bar

· Dryrunning design: no oil flooding inside brake housing (dry multidisc)

· Options: inductive position sensor, SPDC speed sensor, ATEXexplosionproof version for hazardous areasmysolution...

· Mount: flangemounted directly to Hägglunds CA70 / CAseries motor shaft end.
