HMB200 High-Torque Motor for Heavy-Duty Applications

Port layout

• A / B: Main bi‑directional high‑pressure working ports

• C: Crankcase drain port — must route directly back to tank, minimal back‑pressureKawasaki P...

Installation note: drain connection must be taken above motor horizontal centre‑line; vertical shaft‑up mounting requires extra drain port + check‑valve arrangement to prevent bearing starvationKawasaki P....

Design features

1. Hydrostatic balanced piston‑shoe assembly, excellent break‑away torque at zero speed, low wear for frequent reversing marine winch duty cycleKawasaki P...

2. Large output‑shaft roller bearings, accepts heavy drum radial loads, direct‑drive winch without gearbox

3. No built‑in free‑wheel valve (unlike Bauer HMB7‑HV272). If gravity pay‑out / free‑run required, external free‑wheel manifold must be fitted.

4. Robust cast housing, salt‑spray resistant for shipboard environment.

Typical applications

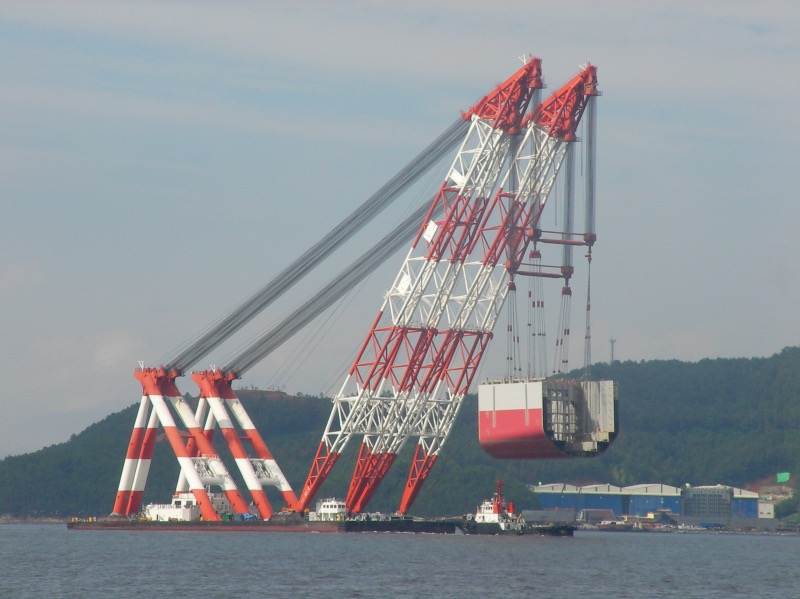

• Mooring winches, anchor winches, anchor‑handling winches, deck cranes, dredger drives, offshore deck machinery, heavy industrial winches.




Common failure & service notes

1. Case drain back‑pressure over 5 bar

   Symptoms: shaft seal blow‑out, accelerated internal wear, efficiency drop. Critical for Staffa HMB series.

2. Cavitation damage during overrunning load (winch lowering): requires boost‑pressure circuit.

3. Shaft seal leakage: common marine service item; replace full seal kit during overhaul.

4. Shock pressure spikes: use relief valves to limit intermittent pressure below 293 bar.

Standard spare‑parts list

• Complete seal kit (shaft seal, O‑rings, back‑up rings)

• Piston‑shoe assemblies

• Cam ring

• Distributor / valve plate

• Output shaft bearing set
