Hydraulic drive failures paralyze vessel operations. When a mooring winch stops pulling, deck cranes freeze, or propulsion systems lose maneuverability, the entire ship suffers. The culprit is often an aging radial piston motor. Legacy CA series drives eventually face declining performance. Internal leakage increases over thousands of operating hours. Catastrophic mechanical failures occur without warning. Fleet managers face a difficult choice. They must decide between complex, time-consuming repairs and sourcing drop-in replacements.

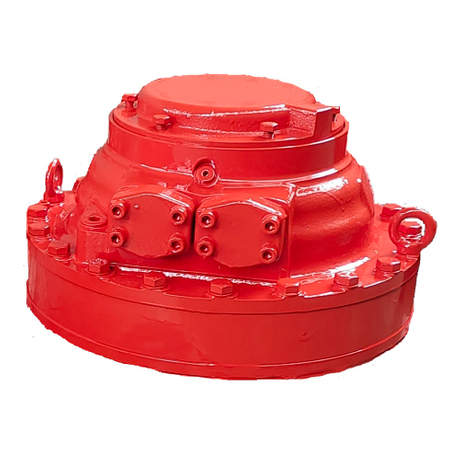

CA motors offer unmatched power density. They fit seamlessly into tight deck spaces where traditional gearbox setups fail completely. Their compact footprint makes them indispensable for heavy-duty marine applications. This guide provides a technical framework for evaluating, sourcing, and integrating a marine CA hydraulic motor. You will learn how to minimize vessel downtime, ensure system compatibility, and mitigate severe post-installation risks.
Direct Interchangeability is Critical: Specifying an exact dimensional and volumetric match (e.g., splines, mounting flanges, port locations) is non-negotiable to avoid costly deck modifications.
OEM vs. Compatible Aftermarket: High-quality compatible replacements offer significant lead-time and cost advantages, provided they meet strict marine classification society standards (e.g., DNV, ABS).
Contamination Risk Mitigation: Replacing a motor requires rigorous fluid extraction—including draining factory test fluids from the new unit—and system flushing protocols to prevent residual particulate from destroying the new motor.
Application-Specific Sizing: Selecting the correct displacement—whether a CA50, CA100, or CA140—must align precisely with the vessel's existing hydraulic pump output and required winch/crane torque curves.
You must define clear operational thresholds that justify a full motor replacement. Standard overhauls cannot fix catastrophic mechanical issues. Scored cam rings dictate immediate replacement. Severe cylinder block wear destroys volumetric efficiency permanently. Cracked cast housings compromise structural integrity under load. An irreversible loss of power density means the motor cannot hold suspended loads safely. If the motor cannot achieve 90% of its original factory torque rating, replace it. Rebuilding a severely damaged unit wastes time and resources. We often see maintenance teams attempt to polish scored cam rollers. This temporary fix fails rapidly under heavy winch loads. You need a permanent solution.
Never assume the motor is the only failing component. Verify the entire pump-to-motor relationship. Upstream hydraulic pump degradation often mimics radial piston motor failure. Check the main system pressure at the manifold. Measure the case drain flow directly from the motor. Connect a flow meter to the case drain line and run the motor against a stalled load. High case drain flow indicates severe internal motor leakage. Low system pressure points to a failing variable displacement pump. Ensure the failure is isolated entirely to the motor itself before ordering a replacement. Inspect the return filters for brass or steel shavings. Brass indicates cylinder block wear. Steel points to cam ring or roller bearing failure.
Repairing heavily worn motors hides massive operational costs. Internal components like piston assemblies and distributor valves have unpredictable lead times. Sourcing qualified marine hydraulic technicians is increasingly difficult. Harsh marine environments increase the risk of recurring failures after a rebuild. Machining damaged cylinder blocks rarely restores exact factory tolerances. Calculate the true cost of an overhaul accurately. Factor in specialized labor, replacement parts, and lost operational time. A rebuilt motor might pass a bench test but fail during a heavy lift at sea. The financial risk of a secondary failure far outweighs the initial savings of a repair.
Vessel downtime destroys fleet profitability. Compare the typical drydock time required for a complete motor rebuild versus a direct swap. Rebuilding a motor takes weeks of shop time. Swapping a pre-tested, fully assembled replacement unit takes days. Port time is expensive. A drop-in replacement minimizes this financial drain immediately. Fleet managers must prioritize solutions that return the vessel to active duty swiftly. Every day a cargo ship sits idle waiting for motor parts, the company loses thousands of dollars in charter fees.

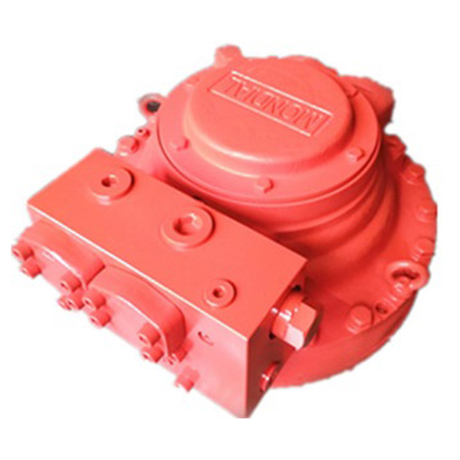

Procurement avenues fall into two distinct categories. You can source directly from the original manufacturer, such as Bosch Rexroth or Hägglunds. Alternatively, you can source engineered compatible replacement motors. OEM units offer brand familiarity but often suffer from extended delivery schedules. Engineered compatible aftermarket units offer speed and exceptional value. High-quality aftermarket options provide exact dimensional matches. They bolt directly onto existing winch and crane mounts without modification. You avoid cutting deck plates or welding new mounting flanges.
The 50-series displacement range serves specific lightweight marine needs. It offers high flexibility and power density in highly compact spaces. Typical marine applications include lighter deck machinery. Auxiliary winches and hydraulic boat lift pumps rely heavily on this size. When evaluating a CA50 compatible replacement motor, check the main bearing load capacities. Verify its low-speed high-torque performance metrics. It must handle sudden load spikes without stalling or bypassing fluid. Look for units that maintain high volumetric efficiency even at speeds below 10 RPM. This ensures smooth, jerk-free operation when lifting small tenders or adjusting gangways.
Mid-range power density demands robust engineering. Standard cargo cranes use the 100-series class extensively. Anchor handling equipment also requires this specific displacement. A reliable CA100 marine hydraulic motor must resist heavy shock loads during rough sea conditions. Continuous pressure ratings are mandatory here. The motor must sustain high operating pressures during prolonged lifting operations without overheating the hydraulic fluid. Anchor windlasses subject these motors to violent torque spikes when the anchor breaks free from the seabed. The internal splines and distributor valves must withstand these sudden force reversals.

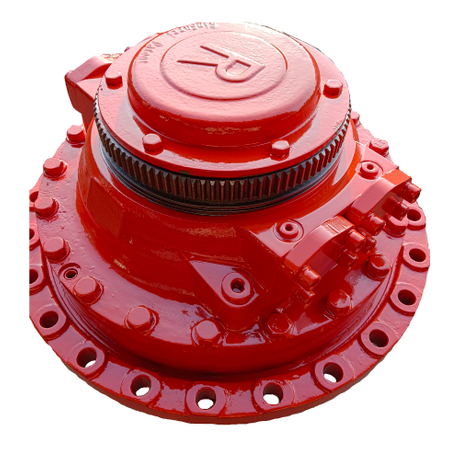

Heavy-duty applications push hydraulic systems to their absolute limits. Heavy lift cranes require massive starting torque. Main propulsion assist systems demand continuous, uninterrupted power. Large towing winches rely entirely on the 140-series. A CA140 replacement hydraulic motor must feature exceptional thermal dissipation capabilities. Heat destroys hydraulic fluid viscosity. Brake holding capacity at maximum displacement is also a strict requirement. The parking brake must hold massive suspended loads securely. Towing winches generate massive back-tension. The motor must hold this tension without internal slippage.
Motor Series | Primary Marine Application | Key Performance Requirement | Typical Deck Location |
|---|---|---|---|
CA50 | Boat lifts, auxiliary winches | Compact footprint, low-speed stability | Aft deck, small davits |
CA100 | Cargo cranes, anchor handling | Shock-load resistance, continuous pressure | Mid-ship, bow deck |
CA140 | Heavy lift cranes, towing winches | Thermal dissipation, high holding torque | Main deck, stern towing area |

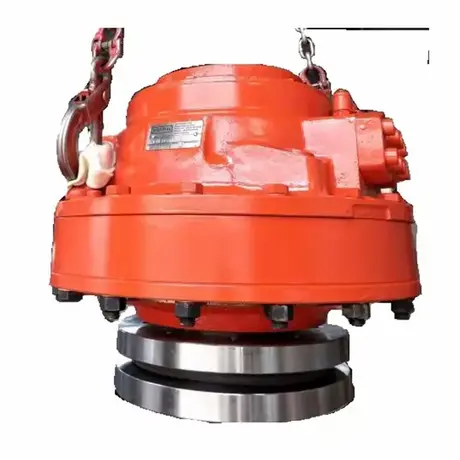

The radial piston design delivers exceptionally high starting torque. This design translates directly to immediate lifting power. You must verify that a replacement motor matches the original's mechanical efficiency perfectly. It must also match the exact compact footprint. A physically larger motor will not fit the existing deck mounts. Check the published torque curves. Ensure the starting efficiency meets your specific winch requirements under full load. A motor with poor starting efficiency will struggle to lift a load from a dead stop, causing the hydraulic system to bypass over the relief valve.
Saltwater destroys unprotected steel rapidly. Evaluate the necessary exterior coatings on any replacement unit. Multi-layer epoxy systems provide essential saltwater corrosion resistance. Standard industrial paint will fail on a ship deck within months. Examine the shaft seal configurations closely. They must prevent seawater ingress entirely. They must also withstand high-pressure washdowns from deck crews. Dual-lip Viton seals offer superior protection against harsh marine elements. Stainless steel hardware on exposed external fittings prevents rust from seizing the connection points.
Suspended loads present severe safety risks to the crew. Evaluate the multi-disc parking brakes carefully. You must match the brake release pressures to the vessel's existing hydraulic circuit. Test the brake release pressure with a calibrated gauge. Most marine brakes require between 15 and 25 bar to fully release. If the system only provides 12 bar, the brake will drag, overheat, and destroy the friction discs within hours. You must also match the static holding torque precisely. This ensures strict compliance with maritime safety regulations. A weak brake will let a heavy load slip. Verify the brake holding capacity against the crane's maximum safe working load.
Component | Marine Standard Requirement | Failure Consequence |
|---|---|---|
Exterior Coating | Multi-layer marine epoxy (C5-M rating) | Rapid housing corrosion, structural failure |
Shaft Seals | Dual-lip Viton with stainless springs | Seawater ingress, bearing destruction |
Parking Brake | Fail-safe multi-disc, matched static torque | Dropped loads, severe safety hazards |
Cross-contamination destroys hydraulic systems from the inside out. Manufacturers test new motors with specific calibration fluids. You face a severe risk if you mix these test fluids with shipboard oil. You must completely drain the factory test fluid from the new replacement motor. Do this prior to installation on the deck. Never mix it with the vessel's existing hydraulic fluid. Incompatible fluids create sludge that blocks distributor valves.
Follow a strict framework for removing old hydraulic fluid from the lines. This prevents circulating metal shavings from destroying the new motor.
Drain the main hydraulic reservoir completely using a dedicated transfer pump.
Disconnect all high-pressure and return lines from the old motor manifold.
Flush the lines with a dedicated external cleaning unit to remove trapped debris. Use a 10-micron absolute filter cart to circulate the fluid for at least 24 hours.
Replace all inline pressure and return filters with new elements.
Verify fluid cleanliness meets ISO 4406 standards before connecting the new unit.
Mechanical alignment is unforgiving. You must align the splined hollow shaft or solid shaft perfectly with the driven machine. Inspect the female splines on the winch drum. If they show more than 10% wear on the tooth profile, replacing the motor alone will not solve the problem. The worn drum splines will rapidly destroy the new motor shaft. Misalignment destroys main bearings rapidly. Torque arms absorb reactive forces during operation. Improper installation induces severe radial and axial loads. These unintended loads will shatter the motor shaft under heavy use. Use precision dial indicators to verify alignment tolerances before tightening the mounting bolts. Keep radial runout below 0.05mm. Apply marine-grade anti-seize compound to the splines to prevent fretting corrosion over time.
Dry starts destroy internal components instantly. You must follow strict protocols for filling the motor case. Use clean, filtered fluid prior to startup. Bleed all trapped air from the highest case drain port. Execute a stepped break-in procedure. Slowly increase system pressure and RPM over several hours. This protects internal bearings and cam rollers. Establish baseline post-installation maintenance routines immediately. Focus on continuous viscosity monitoring. Regulate fluid temperature to ensure long-term motor survival. Keep operating temperatures between 40°C and 60°C to maintain optimal fluid viscosity.
Time is money in maritime operations. Analyze the trade-off between waiting for an OEM unit and procuring a compatible replacement. OEM lead times often stretch 6 to 12 months. An immediate, in-stock compatible replacement gets the vessel back to work fast. Calculate the daily cost of a sidelined ship. The capital expenditure for a compatible unit is often lower. The immediate availability provides massive operational value to the fleet. You eliminate the need for expensive temporary equipment rentals while waiting for parts.
Finding qualified repair personnel is a major industry pain point. Prioritize vendors who offer comprehensive technical support. They should provide detailed installation guidance. They must offer remote troubleshooting assistance when problems arise. A vendor who just ships a wooden crate is a liability. You need an engineering partner who understands marine hydraulic systems deeply. They should review your hydraulic schematics before finalizing the order to guarantee compatibility.
Trust requires verifiable proof. Establish baseline requirements for vendor trustworthiness. Demand factory acceptance test (FAT) reports for the specific serial number you purchase. Request detailed volumetric efficiency charts. Review the comprehensive warranty terms before issuing a purchase order. A reputable supplier will provide all testing documentation upfront. This data proves the motor meets its published specifications under load. Reject any motor that arrives without a serialized test certificate.
Maritime safety is heavily regulated globally. Ensure the replacement motor meets strict certification requirements. The vessel's governing body dictates these rules. Lloyd's Register, DNV, and ABS set rigorous standards for deck machinery. The replacement motor must meet or exceed these exact requirements. Non-compliance voids marine insurance policies. It also grounds the vessel during routine port state control inspections. Verify that the manufacturer holds the necessary type approvals for marine applications.
Replacing a radial piston motor requires absolute precision. Success hinges on exact dimensional matching. Rigorous fluid management prevents premature catastrophic failure. Selecting the right displacement size ensures optimal winch and crane performance. Do not compromise on these three pillars. Advise your procurement and engineering teams to be ruthless in their selection process. Prioritize vendors who provide transparent performance data, immediate availability, and marine-specific engineering support.
Execute the following steps to initiate a successful replacement:
Audit the current motor data plate to confirm exact displacement, series number, and spline type.
Extract system pressure, flow parameters, and brake release requirements from the vessel hydraulic schematics.
Contact a specialized hydraulic supplier to request a direct technical drawing comparison.
Secure a formal quote that explicitly includes lead times, warranty terms, and FAT documentation.
A: Yes. High-quality compatible aftermarket units offer exact dimensional interchangeability. They match the original spline, mounting flange, and port locations. This provides performance parity while offering significant cost savings and much shorter lead times.
A: Read the existing motor data plate. It lists the exact displacement and series number. You can also measure the physical dimensions and cross-reference your vessel hydraulic schematics for required torque and flow parameters.
A: Drain the main reservoir and remove all old fluid from the lines. Drain the factory test oil completely from the new unit. Flush the system, change all filters, and ensure the new fluid meets ISO cleanliness standards.
A: Torque loss indicates severe internal wear. Scored cam rings, worn cylinder blocks, and distributor valve damage cause bypass leakage. Fluid viscosity breakdown from excessive heat also reduces power density and lifting capacity.
A: Holding brakes are typically modular. They must be specified based on your winch or crane load-holding requirements. Ensure the replacement brake matches the original release pressure and static holding torque.
A: Use high-quality marine-specific hydraulic fluid with anti-wear additives. Viscosity grades like ISO VG 46 or 68 are common. Always maintain proper temperature operating ranges and conduct routine viscosity checks to protect internal components.
