Deck machinery, winches, and propulsion systems operate under continuous high loads. Saltwater exposure and extreme shock forces are daily realities on any commercial vessel. Mechanical failure is simply not an option here. Underspecifying or overspecifying a marine CA hydraulic motor creates severe operational risks. You might face system overheating, premature seal failure, excessive weight, or inadequate torque for heavy-duty lifting. Selecting the correct compact, high-torque, low-speed (HTLS) radial piston motor requires rigorous evaluation. You must assess displacement needs and system architecture compatibility. This guide provides a technical framework for shortlisting and specifying CA series motors for vessel applications. We will look at exact torque requirements, shaft configurations, and hydraulic power unit matching to ensure your deck equipment runs without interruption.
Application Matching: The choice between a marine CA100, CA140, or CA210 hydraulic motor hinges strictly on required torque-to-weight ratios, peak operating pressure demands, and physical footprint constraints.
System Integration: A motor is only as reliable as its supporting architecture; proper pump sizing, valve logic, fluid filtration, and thermal management are non-negotiable for marine setups.
Environmental Resilience: True marine-grade motors require specific shaft seals, corrosion-resistant coatings, and fluid compatibility to survive continuous saltwater exposure.
Compliance & Certification: Shortlisted motors must meet stringent marine classification society standards (e.g., DNV, ABS, Lloyd's Register) to ensure vessel safety and insurance compliance.
Marine hydraulic motors must meet strict baseline performance expectations. We measure success by power density, flexibility in mobile deck applications, and resistance to shock loads. Internal components cannot degrade under sudden tension spikes. A reliable motor ensures uninterrupted deck operations during harsh weather conditions.
The radial piston and cam ring design efficiently translates hydraulic fluid pressure directly into rotary motion. Fluid enters the cylinder block, pushing pistons outward against a wave-shaped cam ring. The reaction force generates immediate rotational movement. This energetically dense rotary actuation provides the massive starting torque required for marine deck machinery. You get full torque from a standstill, which is mandatory for lifting heavy anchors or tensioning mooring lines.

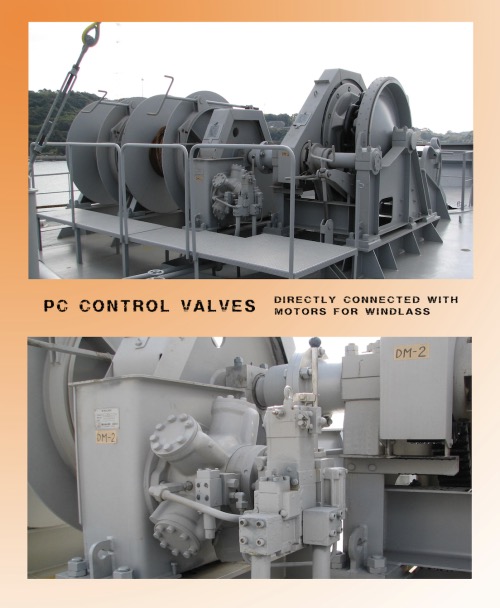

Radial piston CA motors are the industry standard for mooring winches, anchor windlasses, and cranes. They outperform axial piston or gear motors in these specific applications. Axial designs struggle to provide sufficient starting torque without external gear reduction. Gear motors lack the precise low-speed control necessary for heavy lifting. HTLS motors deliver superior starting torque efficiency and precise load control at very low rotational speeds.
The ability to freewheel is a major operational advantage for many marine applications. Rapid payload drops or anchor deployments require the drum to spin freely. CA series motors achieve this by retracting the pistons away from the cam ring. You apply a low case pressure, which forces the pistons into the cylinder block. The block then rotates freely without contacting the cam ring. This process generates zero heat and eliminates fluid resistance. You avoid the need for complex, failure-prone mechanical clutch mechanisms on the winch drum.
Modern vessels face strict spatial constraints. Deck space is highly valuable. The CA series provides high mechanical output in a remarkably compact envelope. You can mount the motor directly to the driven shaft. This direct-drive capability reduces or entirely eliminates the need for heavy, space-consuming gearboxes. You save weight and simplify the mechanical driveline.
Shock load absorption is another major advantage. When a vessel heaves in heavy swells, mooring lines snap tight instantly. This sends a massive mechanical shock directly into the winch drum and down the motor shaft. CA motors handle this because the radial piston design distributes the load across multiple cam rollers simultaneously. The hydraulic fluid itself acts as a damper, absorbing the kinetic energy before it can shatter mechanical components.
Reading motor specification sheets requires looking beyond top-line marketing claims. You must map specific technical features to actual operational outcomes. Every specification directly impacts how the motor behaves on the deck.
Specific torque dictates your lifting and pulling capacity. We measure this in Newton-meters per bar (Nm/bar) of pressure. A higher specific torque means the motor generates more rotational force for every unit of fluid pressure applied. You must calculate your maximum load requirements and select a displacement volume that matches. Displacement volume directly dictates the required flow rates from the vessel's hydraulic power unit (HPU). Larger displacement requires larger pumps.
You must balance continuous operating pressure against peak pressure limits. Continuous pressure defines the normal working load the motor can sustain indefinitely. Peak pressure handles sudden shock loads, like a wave striking a suspended load. Operating constantly near peak pressure causes rapid fatigue. Maximum rotational speed impacts cooling requirements and volumetric efficiency. Spinning the motor too fast generates excessive internal heat and degrades hydraulic fluid.
Understanding the difference between volumetric efficiency and mechanical efficiency is necessary for proper system design. Volumetric efficiency refers to the amount of fluid lost to internal leakage. Mechanical efficiency refers to the power lost to internal friction. You must account for both when sizing your HPU to ensure the motor receives enough usable power under full load.
Mounting orientations and shaft configurations dictate how you integrate the motor into the vessel. You have several primary options:
Splined shafts provide excellent torque transfer for heavy shock loads. They distribute the twisting force across multiple teeth, preventing shear failures.
Keyed shafts suit lighter duty applications with steady loads where shock forces are minimal.
Hollow shafts with shrink discs offer secure, backlash-free connections directly to winch drums. This is the preferred method for heavy marine winches.
Torque arm mounting absorbs shaft deflection and protects internal motor bearings from bending moments.
Direct flange mounting requires perfect alignment but offers a highly rigid connection for compact spaces.
Verifying classification society approvals is mandatory for marine applications. DNV, ABS, and Lloyd's Register certifications prove the motor meets strict safety standards. These certifications are not mere paperwork. They verify rigorous testing for burst pressure limits, fatigue life under cyclic loading, and complete material traceability. Insurance companies require these certifications for vessel compliance.
We categorize CA motors based on objective use cases. There is no single universal motor. You must match the motor's capacity to the specific deck application.

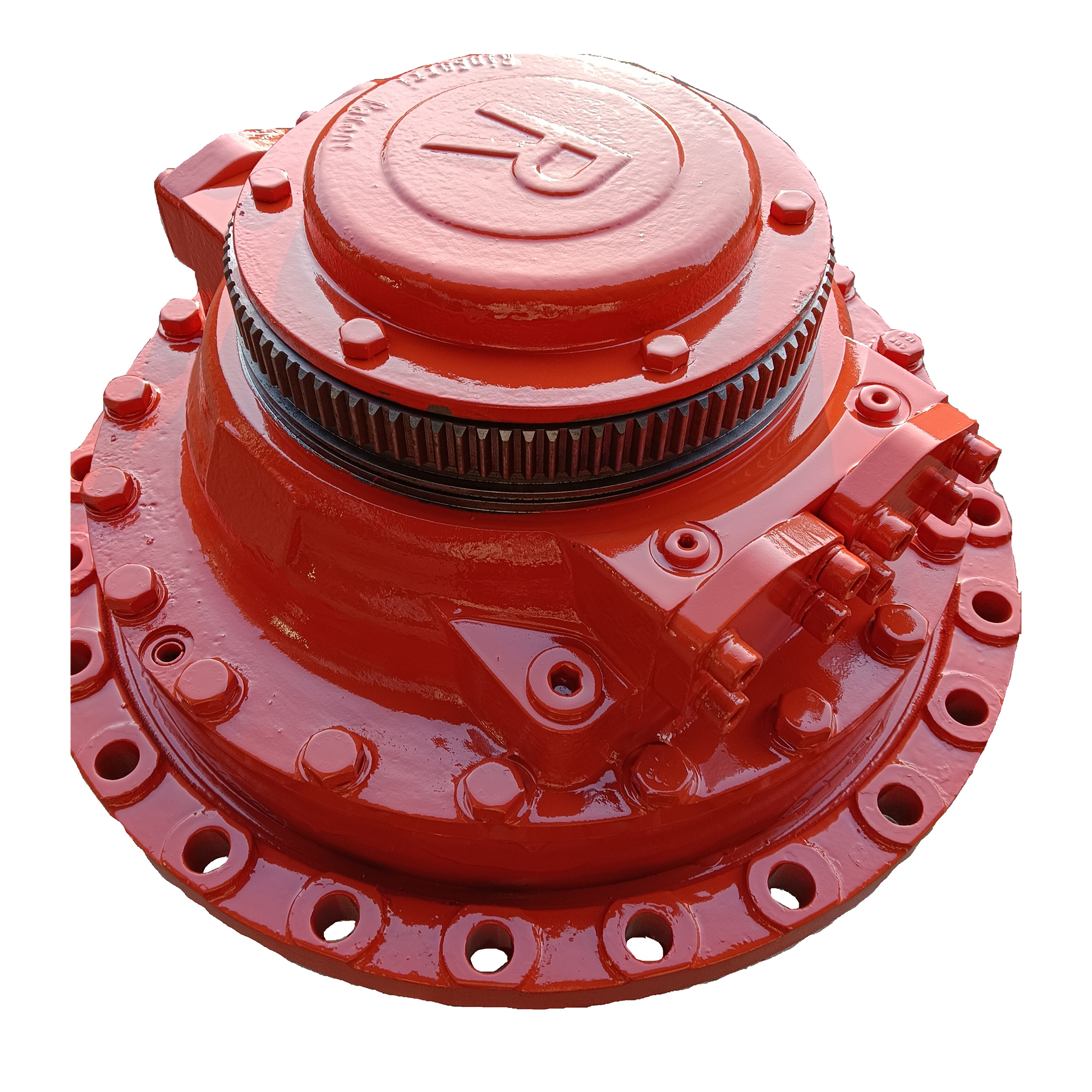

The marine CA100 hydraulic motor serves perfectly in auxiliary roles. We use it for auxiliary winches, lighter duty deck cranes, and variable-speed spindle control for marine machine tools. It offers a highly flexible, compact footprint. You can install it in tight deck corners where larger motors simply will not fit. However, it has strict maximum torque thresholds. You should never stretch this motor for primary mooring applications. Overloading a CA100 leads to rapid internal bypass and eventual mechanical failure. It operates best with lower flow rates, making it highly efficient for secondary deck systems.
The marine CA140 hydraulic motor represents the mid-range standard. It handles standard mooring winches, Ro-Ro ramp drives, and medium-capacity lifting tasks. This model provides an optimal balance of displacement capacity, power density, and physical footprint. It fits easily into standard winch frames while delivering enough torque to handle unpredictable tidal forces during mooring operations. When operating a Ro-Ro ramp, the CA140 provides the exact holding power required to keep the ramp steady while heavy vehicles load and unload, compensating for the vessel's shifting draft.
The marine CA210 hydraulic motor dominates heavy-duty applications. Specify this unit for heavy-lift offshore cranes, primary anchor windlasses, and direct-drive propulsion assist. It delivers massive torque output capable of handling heavy anchor chains on large commercial vessels. However, integration requires careful planning. This motor places significantly increased demands on the vessel's HPU. You need larger reservoir capacity, higher pump flow, and heavily reinforced structural mounting points to handle the extreme reaction forces generated during heavy lifts.
Motor Model | Primary Application | Torque Output Profile | HPU Flow Requirement | Footprint / Weight |
|---|---|---|---|---|
CA100 | Auxiliary winches, light cranes, machine tools | Low to Medium | Low | Highly compact, lightweight |
CA140 | Mooring winches, Ro-Ro ramps, medium lifting | Medium to High | Moderate | Balanced, fits standard frames |
CA210 | Anchor windlasses, heavy-lift cranes, propulsion | Extreme / Heavy-Duty | High | Large, requires reinforced mounting |
A high-quality motor will fail quickly if the surrounding hydraulic circuit is poorly designed. The motor and pump share a symbiotic relationship. You must engineer the entire system as a single cohesive unit to ensure reliability.
Pump sizing requires precise mathematical calculation. You determine the required hydraulic pump flow by multiplying the motor's displacement by the target rotational speed. You must then factor in volumetric efficiency losses. Precise proportional valve logic is mandatory. Distributor valves ensure smooth load handling. They prevent sudden jerks when lifting heavy cargo. Counterbalance valves provide essential load-holding capabilities, preventing suspended loads from dropping if a hose bursts.
You must decide between open-loop and closed-loop hydraulic circuits. Closed-loop systems are often preferred for heavy marine winches because they provide dynamic braking. The pump controls the motor's deceleration, absorbing the kinetic energy of the load. Open-loop systems are simpler and run cooler, making them suitable for continuous rotation applications like deck cranes.
Case drain lines require special attention during installation. Radial piston motors rely on case drain lines to relieve internal pressure. If the case pressure exceeds the seal rating, the shaft seal will blow out. The case drain must route directly back to the reservoir with minimal backpressure. Never connect a case drain line into a high-pressure return line.
Marine temperature fluctuations severely impact hydraulic fluid viscosity. Cold environments thicken the oil, causing pump cavitation. Hot environments thin the oil, reducing lubrication and increasing internal leakage. You must install appropriately sized heat exchangers to maintain optimal fluid temperature. Reservoir sizing must allow enough dwell time for air bubbles to escape the fluid before it re-enters the pump suction line.
Strict fluid cleanliness protects internal components. Marine environments introduce significant contamination risks. You must maintain strict ISO cleanliness codes (typically 18/16/13 or better). Abrasive particles destroy cam rings and piston rollers. Water ingress degrades fluid lubricity and causes internal rusting. Install high-quality pressure filters, return line filters, and desiccant breathers on the reservoir to block atmospheric moisture.
Engineers often compare hydraulic motor setups to Variable Frequency Drive (VFD) electric motors. Hydraulics maintain clear superiority in harsh, wet environments. Hydraulic systems pose zero electrical spark risk, making them ideal for hazardous cargo vessels. They offer vastly higher shock tolerance. A hydraulic relief valve easily absorbs sudden mechanical shocks that would shatter an electric motor's gearbox. Furthermore, hydraulics deliver superior power-to-weight ratios, saving valuable deck space.
Long-term operational reliability depends entirely on your maintenance strategy. Marine environments actively attack mechanical equipment. You must implement robust protection and servicing protocols to prevent catastrophic failures at sea.
Corrosion protection is your first line of defense. Standard industrial paint will strip away within months. True marine-grade motors require specific paint systems, such as ISO 12944 C5-M certified coatings. These multi-layer epoxy and polyurethane systems resist continuous salt spray and UV degradation. Heavy-duty shaft seals prevent water ingress and fluid leaks. Dual-lip Viton seals with stainless steel tension springs offer the best protection against abrasive salt crystallization on the shaft.
You must establish realistic expectations for maintenance intervals. Regular oil sampling dictates your fluid change schedule. You must monitor for water content, particulate contamination, and oxidation. Spectrographic analysis identifies specific wear metals in the oil, allowing you to pinpoint failing components before they break.
Replacing a shaft seal at sea requires specific procedures. You must relieve all case pressure, drain the housing, and carefully extract the old seal without scoring the shaft. Using proper installation sleeves prevents the new seal lip from tearing on the shaft splines or keyways during reassembly.
Well-designed CA motors allow technicians to access internal components while the motor remains installed on the vessel. You can often replace cam rings, piston rollers, and cylinder blocks without unmounting the entire unit from the winch frame. This in-situ serviceability prevents severe downtime. Avoiding dry-docking for preventable repairs keeps the vessel operational.
Selecting a marine CA hydraulic motor is an exercise in precise engineering matching. You must align torque demands, shaft configurations, and system flow capabilities to the specific physical constraints of your vessel. A mismatched system guarantees operational failure and safety risks.
Your shortlisting logic should follow clear application boundaries. Use a CA100 for auxiliary and light-duty tasks. Specify a CA140 for standard deck operations and mooring. Deploy a CA210 for heavy lifting, anchor windlasses, and high-shock environments.
Audit your current HPU capacity to determine maximum available flow and pressure.
Calculate exact peak torque requirements based on your heaviest anticipated deck loads.
Verify the physical mounting space and structural integrity of your winch or crane frame.
Consult with a certified marine hydraulic engineer to review your proposed valve logic.
Request full material traceability and classification society certificates before finalizing any motor specification.
A: The primary differences lie in displacement volume, peak torque output, and physical footprint. The CA140 has a larger internal displacement, allowing it to generate significantly higher torque at the same operating pressure. Consequently, the CA140 requires a larger physical envelope and higher pump flow compared to the highly compact CA100.
A: No. CA series motors are High Torque, Low Speed (HTLS) radial piston designs. They generate massive starting torque directly at the shaft. This direct-drive capability entirely eliminates the need for heavy gearboxes, saving deck space and removing a major maintenance failure point.
A: Environmentally acceptable lubricants (EALs) are increasingly required for marine deck machinery to prevent pollution during leaks. High-quality mineral oils are also used internally. Regardless of type, the fluid must maintain a stable viscosity index across wide temperature ranges and strictly adhere to ISO cleanliness codes.
A: You calculate required pump flow using a basic formula: multiply your target maximum motor RPM by the motor's displacement volume per revolution. You then divide that number by the system's overall volumetric efficiency (typically around 0.85 to 0.90) to account for internal fluid bypass and leakage.
A: Splined shafts handle heavy shock loads well. Hollow shafts with shrink discs provide a secure, backlash-free connection directly to winch drums. Torque arm mounting is generally preferred over rigid flange mounting for deck machinery, as it absorbs structural deflections and protects the motor's internal bearings.
A: Standard marine CA motors are splash-resistant and built for harsh deck environments. However, they are not fully submersible. For underwater or subsea applications, you must specify a motor with specialized IP68 ratings, pressure-compensated housings, and specific subsea sealing technologies.
A: Premature seal failure usually results from abrasive salt crystallization on the exposed shaft, which tears the seal lip during rotation. Fishing line or debris wrapping around the shaft can also slice the seals. Additionally, excessive internal case drain pressure can physically blow the seal out of its housing.
