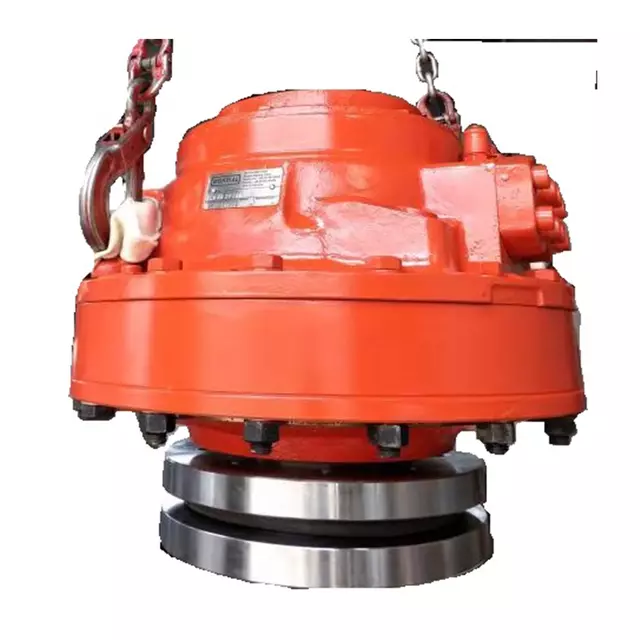

How To Test A Hydraulic Motor

Testing industrial equipment requires absolute precision. We rely on diagnostic testing to uncover hidden volumetric efficiency drops. We actively look for internal wear patterns. We must determine the true repair viability of each component. Many technicians misunderstand this critical process. They mistakenly assume a spinning shaft equals a perfectly healthy unit. This dangerous assumption costs industrial facilities thousands of dollars annually. Blindly hooking an unknown or failed unit to an expensive test stand invites disaster. Metal shavings from a shattered rotating group can easily bypass standard inline filters. These microscopic shavings will permanently contaminate your entire testing infrastructure. Flushing a contaminated central pump station takes days of unplanned downtime.

Our goal is to outline a standardized, safe, and data-driven framework. We will walk you through initial dry pre-checks. We will cover the core diagnostic tools you need. We will guide you through full performance benchmarking. You will learn how to evaluate equipment accurately. You can achieve this high level of testing without risking your facility's critical diagnostic assets.

Key Takeaways

• Asset Protection First: Always perform "dry" mechanical checks before hooking any unfamiliar motor to a wet test bench to prevent cross-contamination.

• Flow Over Pressure: While pressure gauges show resistance, flow meters and case drain measurements are the true indicators of a motor's internal health and efficiency.

• Standardized SOPs Matter: Accurate performance testing requires strict control over fluid temperature (optimally 30°C–60°C), aeration, and delta pressure.

• Modern Testing Infrastructure: Upgrading to PLC-controlled test stands with dynamic braking motors removes human error and provides verifiable data for repair-or-replace decisions.

Phase 1: The "Dry" Pre-Test (Protecting Your Test Stand)

Before you commit valuable resources to a wet bench test, you must rule out catastrophic internal failure. Skipping this physical check risks sending metal debris straight into your test stand’s central pump station. We always start diagnostic evaluations using three specific "dry" checks. They protect your infrastructure and save hours of wasted setup time.

First, perform the shaft rotation test. Grab the drive shaft and rotate it manually. Use standard mechanical leverage like a strap wrench. Look closely for excessive end-play. Feel for gritty resistance or sudden binding. Smooth, consistent resistance is entirely normal. However, grinding indicates compromised bearings. It often points to severely shattered rotating groups inside the hydraulic motor. If it grinds, tear the unit down immediately. Do not place it on your active test bench.

Next, execute a pneumatic seal and port check. Apply regulated compressed air to the primary pressure ports. Keep the air pressure moderate, usually around 30 to 50 PSI. Note this method does not work for vane-type designs due to their floating internal architecture. Listen carefully. Feel for excessive air escaping through the case drain or exhaust ports. A massive air leak immediately signals blown internal seals. It also indicates severely fractured internal components.

Finally, conduct a thorough visual and magnetic inspection. Shine a high-lumen LED flashlight directly inside the case drain port. Inspect the interior cavity for visible scoring or debris. Follow up by inserting a flexible magnetic pickup tool into the port housing. Sweep the magnet along the bottom curve of the casing. If your magnet pulls out metallic shrapnel, stop the procedure immediately. The unit is permanently disqualified from wet bench testing.

Phase 2: Core Parameters and Essential Diagnostic Tools

A successful diagnostic test quantifies four primary metrics. Flow dictates rotational speed. Pressure represents the necessary driving force. Torque measures the actual mechanical work output. Efficiency tracks the energy loss during operation. Measuring these specific parameters requires specialized, calibrated instrumentation. Relying on guesswork leads to frequent misdiagnoses.

Flow meters remain your primary diagnostic tool. A motor’s fundamental job involves converting fluid flow into mechanical rotational speed. A noticeable loss of speed at a specific flow rate clearly indicates internal fluid bypassing. If fluid slips past worn internal clearances, the output shaft slows down proportionally. Pressure gauges measure Delta P. This represents the pressure drop between the fluid inlet and outlet. Pressure simply indicates the load resistance the system faces. It does not necessarily reflect the internal health of the unit.

Torque sensors and variable brake motors are absolutely essential. They apply a measurable, opposing physical load. This mechanical resistance simulates real-world working conditions perfectly. Testing without an opposing load provides almost zero useful data about volumetric efficiency under stress.

Finally, you need accurate temperature and vibration sensors. Fluid temperature must stay constant throughout the entire test. Viscosity changes drastically as oil heats up. This change violently skews flow measurements. Vibration analyzers utilize FFT spectral analysis. They detect subtle shaft misalignment. They also identify early bearing spalling well before a complete catastrophic failure occurs.

Phase 3: Step-by-Step Bench Testing SOP

Strict standardized operating procedures guarantee reliable, repeatable data. You must follow this step-by-step sequence to benchmark performance safely. Consistency is critical for comparing baseline data against future test results.

1. Preparation and Environmental Control: Ensure your hydraulic fluid meets strict ISO cleanliness standards. Bring the system up to an optimal operating temperature. Maintain the fluid between 30°C and 60°C. Cold oil causes sluggish response and creates falsely high pressure readings. Bleed all trapped air from the entire test circuit. Trapped air causes pseudo-cavitation. This aeration guarantees erratic torque readings and introduces dangerous system vibrations.

2. Executing the Baseline Run: Introduce fluid at very low pressure and low flow. This initial step verifies correct directional rotation. It confirms basic shaft seal integrity before you apply heavy mechanical stress. Watch closely for external leaks. Listen for unusual groaning or popping noises.

3. Applying Load and Measuring Torque: Gradually increase the opposing load. Use a precision dynamometer or a variable PLC-controlled brake motor. Continuously monitor the inlet and outlet delta pressure as the load climbs. Log the data points at multiple intervals. Map the resulting torque-speed curve carefully. Compare this customized curve against the manufacturer’s original OEM specifications.

4. Case Drain Flow Analysis: Accurately measure the exact volume of fluid exiting the case drain line. Use a dedicated low-flow meter for this specific measurement.

High case drain flow under load remains the most definitive indicator of internal wear. An efficient unit creates mechanical power. A failing unit bypasses fluid internally. It generates excess heat and eventually sheds metal into the system.

Phase 4: Common Testing Pitfalls and Dangerous Missteps

Even highly experienced technicians fall into common testing traps. Avoiding these dangerous missteps protects your personnel. It also prevents wildly skewed diagnostic data from ruining your evaluation process.

• The "Stall Test" Hazard: Never attempt to mechanically lock the output shaft to test maximum pressure. Doing this without specialized shear-pin safety setups is incredibly dangerous. The sudden pressure spike can violently fracture the solid output shaft. It can easily shatter the external cast-iron housing. Always use dynamic braking to simulate load safely.

• Case Pressure Measurement Errors: Relying solely on a single pressure gauge tapped into the case drain line is highly misleading. Backpressure originating from main return line filters or coolers can easily skew your results. You must measure pressure directly at the motor housing port.

• Outlet Restriction Traps: Technicians sometimes install a manual needle valve on the outlet port. They close it partially to simulate load on externally drained designs. This action artificially spikes internal leakage data. The restricted flow forces fluid past the internal seals unnaturally. It frequently leads to false "failed" diagnoses. True load testing always requires genuine mechanical rotational resistance applied directly to the drive shaft.

• Ignoring Fluid Temperature Variables: Testing a unit using cold, highly viscous oil masks internal wear. Thick oil cannot bypass worn internal clearances easily. This makes a severely damaged unit appear perfectly healthy on paper. Always bring the system up to proper operating temperature before recording any baseline data.

Phase 5: Evaluating Test Stands for Your Facility (Decision Framework)

Selecting the right testing infrastructure defines your diagnostic capabilities. You must understand the major difference between basic tools and industrial equipment. Basic pressure and flow gauges suffice for mobile field diagnostics. You might use them for agricultural equipment or heavy mobile machinery field repair. However, they cannot certify a repaired unit for continuous industrial redeployment.

Modern test stands require specific advanced features to deliver verifiable results. First, look for automated load simulation. Integrating variable brake motors provides precise, highly repeatable counter-torque. This completely removes the inconsistency of manual braking systems. It ensures every component faces the exact same simulated working conditions.

Second, prioritize advanced Data Acquisition (DAQ) systems. PC or PLC-based controls automatically log RPM, Delta P, and volumetric efficiency in real-time. They process this data instantly. The system outputs a definitive "Pass/Fail" report based on predefined parameters. This eliminates human subjectivity from the evaluation process entirely.

Third, insist on superior filtration and system integration. Onboard fluid cleanliness monitoring protects the stand from sudden contamination spikes. High-quality offline kidney-loop filters maintain oil integrity during long testing cycles. Furthermore, Industry 4.0 connectivity allows you to push test results directly to your enterprise maintenance database for permanent record-keeping.

Justify the ROI of an automated test stand logically. Focus on calculating the massive reduction in premature field failures. Factor in the complete elimination of expensive outsourced third-party testing costs. The initial capital investment quickly pays off through drastically increased facility reliability and minimized unplanned downtime.

Conclusion

We must treat component testing as a highly measurable science rather than a blind guessing game. Moving from basic visual dry checks to data-backed performance evaluations ensures long-term operational reliability. Relying on accurate case drain analysis and precise torque-speed mapping eliminates guesswork completely. You can confidently return components to the production floor knowing they will perform perfectly under stress.

• Audit your current testing procedures for safety, accuracy, and standardization.

• Implement mandatory physical "dry checks" before authorizing any wet bench testing.

• Calibrate your facility's flow meters, pressure transducers, and torque sensors annually.

• Stop relying on dangerous stall tests or outlet restriction methods for diagnostics.

• Request a professional engineering consultation to upgrade your infrastructure to a custom automated test stand.

FAQ

Q: What is the acceptable case drain flow for a hydraulic motor?

A: Acceptable case drain flow varies by manufacturer and specific internal design. Generally, new gear or vane motors bypass 1% to 5% of total flow. Piston designs might bypass slightly more depending on the displacement. Always consult the OEM manual for exact baseline tolerances. If flow exceeds these parameters under load, internal wear is highly likely.

Q: Why is my hydraulic motor making excessive noise during testing?

A: Excessive noise typically stems from aeration, severe cavitation, or mechanical misalignment. Trapped air in the fluid creates pseudo-cavitation. This causes a loud whining or popping sound. Alternatively, grinding noises point directly to bearing spalling or internal metal-on-metal contact. Stop testing immediately to prevent further catastrophic damage to the unit.

Q: Can I test a hydraulic motor using only a pressure gauge?

A: No. A pressure gauge only measures the resistance to fluid flow. It cannot detect internal fluid bypassing or volumetric efficiency drops. To accurately assess internal health, you must use a high-precision flow meter alongside torque sensors. This combination measures actual speed and mechanical output power under a simulated load.

Q: What is the difference between testing a closed-loop vs. open-loop hydraulic motor?

A: Closed-loop testing circulates fluid directly between the pump and the unit being tested. This requires precise charge pressure management and specialized cooling systems. Open-loop testing pulls fluid from a central reservoir and returns it there directly. Closed-loop setups demand stricter temperature controls and specialized DAQ configurations to monitor specific charge circuit dynamics.
