How To Control Hydraulic Motor Speed

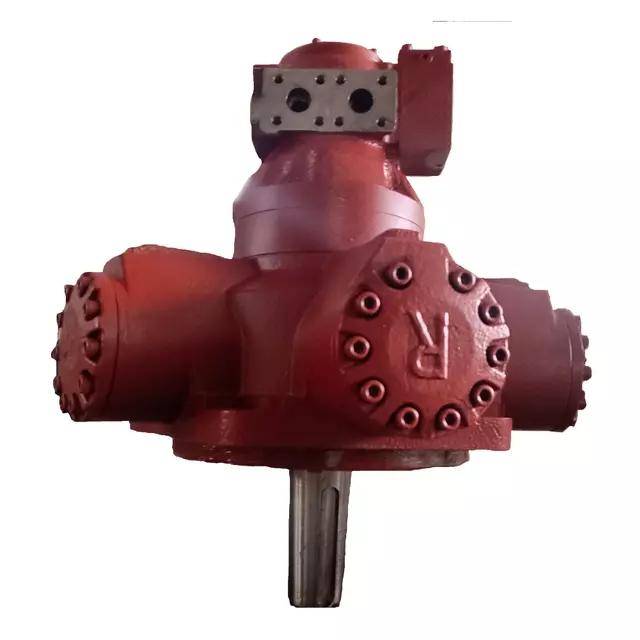

Getting a fluid power system to run at the precise required pace is rarely a matter of turning a single dial. Establishing accurate speed control for a hydraulic motor requires balancing complex system architecture, thermal management, and strict operational constraints. Many engineers mistakenly attempt to use pressure adjustments to dictate how fast their equipment rotates. This fundamental error inevitably leads to severe energy inefficiencies, excessive system heat, and premature component failure. Our purpose here is to correct this misconception. We will provide a rigorous, evidence-based evaluation of modern speed control methods. You will learn how to properly separate low-cost throttling techniques from high-efficiency modern drive architectures. By understanding these foundational engineering principles, you can keep heavy-duty applications running smoothly while avoiding costly design traps.

Key Takeaways

• The Fundamental Law: Hydraulic motor speed is dictated entirely by fluid flow rate and motor displacement, while torque is dictated by pressure and load.

• Throttling vs. Efficiency: Flow control valves offer the lowest upfront cost but generate significant heat (wasted energy); variable displacement or servo-driven pumps offer higher ROI for continuous operations.

• Hardware Realities: Standard ball or gate valves must never be used for proportional speed control—specialized needle valves or pressure-compensated flow controls are mandatory.

• Modern Standards: Closed-loop electronic control and servo-driven fixed pumps represent the current industry benchmark for combining high precision with zero throttling loss.

The Physical Imperative: Decoupling Speed from Torque

To design an effective control circuit, you must first separate the concepts of speed and torque. In fluid power engineering, these two variables operate independently based on completely different physical inputs. Blurring the lines between them causes endless troubleshooting headaches.

The Flow-Speed Relationship

Speed serves as the mathematical result of incoming fluid flow rate divided by the internal displacement of your equipment. Displacement refers to the exact volume of fluid required for one complete revolution of the output shaft. If you pump 10 gallons per minute into a specific motor, it will spin at a calculated rate. If you want it to spin twice as fast, you must either double the incoming flow or swap the unit for one possessing half the displacement. Flow rate remains the sole dictator of rotational velocity.

The Pressure-Torque Reality

Industry standards universally dictate a simple rule: the load determines the pressure. Adjusting system pressure directly impacts available torque. It does not dictate operating speed. When you increase the load on a conveyor belt, the fluid pressure naturally spikes to generate enough torque to overcome this new physical resistance. If you lower the main system pressure settings, you only limit the maximum twisting force the shaft can produce before stalling.

Addressing Common Implementation Myths

Engineers often fall into specific design traps when trying to bypass these physics. We must highlight these errors to prevent system damage.

Common Mistake: The Outlet Relief Trap

Many technicians attempt to reduce speed by adjusting the relief valve on the low-pressure outlet side. This flawed approach dumps flow back to the tank after it passes through the system. Doing this creates massive backpressure. Instead of controlling speed efficiently, you essentially apply a hydraulic brake. The fluid fights against the restriction, generating severe heat. This practice risks burning out seals, degrading oil quality, and causing catastrophic component failure.

Solution Category 1: Flow Control Valves (Throttling)

Throttling represents the most common and traditional method for adjusting operational speed. You achieve this by restricting the orifice size within the fluid path. This restriction forces any excess pump flow to dump over the main system pressure relief valve.

Mechanism and Component Evaluation

Flow control valves operate much like a faucet. By narrowing the passage, fewer gallons per minute reach the target destination. We can evaluate three primary hardware solutions within this category.

• Variable Orifice (Needle Valves): These serve as the baseline for manual, proportional adjustments. A finely tapered needle slowly enters the orifice, allowing precise metering. You must follow strict operational rules here: never use standard ball or gate valves for this purpose. Ball valves open too abruptly, offering poor metering resolution and creating severe cavitation risks.

• Pressure Compensated Valves: Applications experiencing fluctuating loads require pressure compensation. If a load suddenly lightens, fluid faces less resistance and speeds up, causing unpredictable machine movements. Pressure compensated valves feature internal spools. These spools dynamically shift to maintain a constant pressure drop across the orifice. This guarantees consistent flow regardless of downstream mechanical resistance.

• Temperature Compensated Valves: Environments experiencing wide temperature swings demand these specialized units. As machinery runs, hydraulic oil heats up and becomes thinner. Hot oil moves through a fixed orifice significantly faster than cold, thick oil. Temperature compensated components use specialized bimetallic elements to adjust the opening size as thermal conditions shift, maintaining a steady pace.

Decision-Stage Assessment

Flow control valves offer very low initial capital expenditure. They boast high simplicity and easy installation. However, standard throttling inherently results in constant power dissipation. Because the primary pump still runs at maximum capacity, forcing fluid through narrow gaps generates tremendous heat. You waste energy constantly.

Solution Category 2: Variable Displacement & Servo-Driven Architecture

Modern engineering favors efficiency. Instead of choking the fluid path downstream, advanced systems adjust the actual volume of fluid entering the hydraulic motor at the source. This eliminates restrictive valves entirely.

Mechanism and Component Evaluation

By controlling the flow generation directly at the pump, you match power output exactly to the workload demand. This prevents fluid bypass and stops heat generation before it starts.

• Variable Displacement Pumps: These advanced pumps contain an internal swashplate. By altering the angle of this swashplate, the internal pistons take shorter or longer strokes. A steep angle pumps maximum fluid. A flat angle pumps nothing. You deliver only the exact flow rate required.

• Servo-Motor Driven Fixed Pumps: This represents a cutting-edge hybrid approach. Engineers pair a standard fixed displacement pump with an electric servo motor. Closed-loop electronic sensors monitor system demand in real-time. The servo motor dynamically speeds up or slows down the physical rotation of the pump itself.

Decision-Stage Assessment

These architectures demand high initial capital expenditure. The hardware costs significantly more than standard valves. However, they deliver exceptional long-term operational efficiency. This approach eliminates throttling losses completely. It drastically reduces system cooling requirements and offers superior energy efficiency for high-duty-cycle applications.

Technical Evaluation Matrix: Matching Method to Application

Selecting the correct approach requires mapping your specific application needs against capital constraints and energy goals.

Cost vs. Efficiency Trade-offs

Every design choice impacts both your budget and your power grid.

• Intermittent / Basic Applications: If a machine only runs for a few minutes per hour, massive efficiency upgrades rarely pay off. A fixed displacement pump paired with simple flow control valves remains financially justifiable.

• Continuous / Heavy-Duty Applications: Injection molding machines, large conveyors, and continuous presses run constantly. Here, variable displacement or servo controls are strictly required. They prevent massive energy waste and protect oil from thermal degradation over long shifts.

Load Sensing Capabilities

You must carefully evaluate the necessity of Load Sensing (LS) systems. LS architectures use a small signal line to communicate downstream pressure requirements back to the main pump. The pump then dynamically adjusts its swashplate to provide just enough flow and pressure to satisfy the heaviest load. This ensures pressure and flow match exactly, preventing unnecessary bypass waste over relief valves.

System Layout Dependencies

Your chosen method directly dictates your physical layout. Relying on valve throttling requires robust thermal management. Since forcing fluid through restrictions creates heat, you need a way to cool the oil. Industry standards dictate reservoir tanks must be sized at a minimum of three times the pump's minute-flow capacity. This large volume allows hot oil enough dwell time to release trapped air and dissipate heat before returning to the circuit. Conversely, highly efficient servo-driven layouts generate so little heat, you can often utilize much smaller reservoirs, saving valuable floor space.

Evaluation Summary Chart

Implementation Risks & Design Traps to Avoid

Even the best theoretical designs can fail during practical implementation. Knowing what to watch out for ensures your final build performs as intended.

Thermal Runaway

Relying heavily on flow control valves without adequate oil coolers invites thermal runaway. As oil heats up, its viscosity drops. Thinner oil slips past internal seals much easier. This internal leakage negatively impacts volumetric efficiency. A machine set to a specific speed in the morning might run noticeably slower by the afternoon due to this viscosity shift.

Component Mismatching

Many facilities try to force variable-speed operation onto existing fixed-circuit designs. Upgrading to a variable displacement pump without simultaneously upgrading your directional control valves causes severe issues. You must use closed-center directional control valves with variable pumps. Using open-center valves leads to parasitic pressure losses, confusing the pump controls and causing erratic machine behavior.

Sensory Latency

Electronic speed control depends entirely on data accuracy. Failing to specify high-resolution flow and pressure transducers ruins the PID loop performance. If sensors react too slowly, the electronic controller constantly overcompensates. This sensory latency results in speed oscillation. The machinery will repeatedly speed up and slow down, an effect known as "hunting," which destroys mechanical linkages over time.

Best Practices for Implementation

• Always verify directional valve center-conditions before swapping pump types.

• Install dedicated oil coolers if using extensive throttling in continuous applications.

• Use transducers with response times under 50 milliseconds for closed-loop systems to prevent hunting.

Conclusion

Finalizing your speed control architecture requires looking far beyond the rotational unit itself. True precision demands evaluating the complete synergy between your pump, valve configuration, and electronic sensors. We have established that attempting to regulate velocity via pressure adjustments is a critical error. Instead, engineers must choose between initial affordability and long-term sustainability.

As a next-step action, we strongly recommend conducting a comprehensive energy efficiency analysis. Compare the continuous power consumption costs of a throttled valve system directly against the upfront investment required for a variable displacement or servo-driven solution. Often, the energy savings justify the advanced hardware within the first year of continuous operation. We encourage engineers to bring specific duty cycles, load variations, and thermal limits to fluid power specialists for precise system modeling before finalizing any schematics.

FAQ

Q: Does lowering the speed of a hydraulic motor affect its torque?

A: Directly, no. Speed depends on flow, while torque depends on system pressure and the load. However, if using a restrictive valve to lower speed causes a significant pressure drop across the motor, the available torque may be indirectly reduced.

Q: Can I use a pressure relief valve to control motor speed?

A: No. Relief valves are safety devices designed to cap maximum system pressure (limiting torque). Using them to dump flow to the tank as a makeshift speed control creates severe heat and energy loss.

Q: How does oil temperature affect my hydraulic motor's speed?

A: As temperature rises, oil viscosity drops. Thinner oil flows more easily through valve orifices and increases internal motor leakage. Without temperature-compensated flow valves or closed-loop electronic controls, a machine will naturally run faster or behave unpredictably as it heats up.
