Specifying components for a hydraulic circuit demands precise alignment between power generation and execution. Engineers often notice pumps and motors appear structurally similar. They both utilize gears, vanes, or pistons. They also operate on reversible mechanical principles. However, treating them as interchangeable components leads to catastrophic system inefficiencies. You risk massive seal blowouts and premature equipment failure.
The core issue arises when design teams misunderstand the directional flow of energy. Misapplying a pump in an actuator role drastically reduces mechanical efficiency. It completely fails to deliver necessary rotational torque. You must understand internal tolerances to build a reliable circuit.
This guide deconstructs the mechanical, operational, and structural differences between these vital components. We provide engineering teams with a clear evaluation framework for specification. You will learn exactly how to distinguish these units. We will help you avoid costly system design errors permanently.
Energy Flow: Pumps convert mechanical energy into fluid power (flow/pressure); a hydraulic motor converts fluid power back into mechanical energy (torque/RPM).
Engineering Focus: Pumps are optimized for volumetric efficiency to maintain constant flow, while motors are optimized for mechanical efficiency to deliver starting and running torque.
Structural Symmetry: Motors require symmetric designs and equal port sizes for bidirectional rotation, whereas pumps typically feature asymmetric ports (larger inlets to prevent cavitation).
Tolerance & Sealing: Motors operate under higher internal casing pressures, requiring significantly tighter manufacturing tolerances and reinforced oil seals compared to standard pumps.
Systems rely on a strict division of labor to function correctly. We start by examining power generation. Pumps act as the beating heart of your hydraulic system. A prime mover drives them continuously. You typically use an electric engine or an internal combustion engine for this task. They function by drawing fluid from a low-pressure reservoir. They mechanically force this fluid into a high-pressure system zone. This continuous action creates the necessary fluid flow. You measure this flow in GPM (gallons per minute) or LPM (liters per minute). This specific flow rate dictates the ultimate operating speed of your entire system.

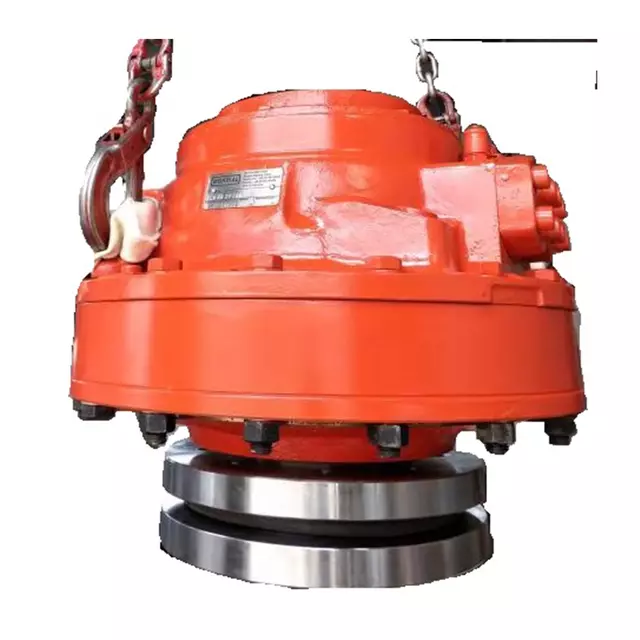

Next, we must consider the actuation phase. The hydraulic motor acts as the muscle at the end of the circuit. It extracts kinetic energy from the highly pressurized fluid flow. It uses this captured energy to execute heavy physical work. The unit translates hydraulic pressure directly into rotational force. We call this force torque. It also dictates the final rotational speed of your application.
These two distinct components create a perfect closed-loop synergy. Directional control valves and flow dividers bridge the physical gap between them. They direct the generated flow from the primary pump into the physical execution phase. The pump pushes the fluid out, the valves route it, and the actuator consumes it. You need both distinct roles to make any heavy machinery function safely.
Look closely at port sizing and rotational symmetry. Pumps typically run continuously in a strict unidirectional manner. They feature a much larger suction port. This large inlet prevents fluid starvation and dangerous cavitation. They use a smaller discharge port to maintain adequate system pressure. Conversely, a hydraulic motor stops, starts, and reverses direction frequently. Its internal structure must be perfectly symmetrical to survive. You will see identically sized inlet and outlet ports. These symmetrical ports handle highly pressurized fluid from either direction without hesitation.
Shaft seals reveal another massive engineering disparity. Pumps naturally route internal leakage back to the low-pressure suction side. This internal routing keeps seal pressure minimal. It often remains well below 1 bar. Actuators face a significantly harsher physical environment. They endure heavy backpressure coming directly from the return line. Shaft seals here must withstand vastly higher pressures. These internal pressures often reach levels up to ten times higher than standard pumps. Manufacturers install heavy-duty, metal-reinforced support washers. These components prevent catastrophic seal blowout under extreme loads.
You must also manage casing leakage properly. Actuators almost always require a dedicated external drain line. This specific line routes internal casing leakage directly back to the fluid reservoir. You prevent catastrophic seal failure during bidirectional operation this way. Without this drain line, the built-up internal pressure destroys the housing.
Component-specific mechanisms highlight these differences perfectly. Vane designs offer excellent real-world evidence. Pump vanes rely heavily on centrifugal force. Fluid pressure helps them extend outward during normal operation. Actuator vanes cannot wait for rotational speed to build. They require internal mechanical mechanisms immediately. Engineers use swallow-shaped springs inside the rotor. These springs maintain continuous stator contact before rotation ever generates centrifugal force.
You must prioritize entirely different metrics during component evaluation. When you assess power generation units, look closely at displacement per revolution. Maximum continuous operating pressure is also highly critical. Your main efficiency focus here remains Volumetric Efficiency. You want steady flow without internal fluid slip.
When you evaluate physical actuators, your priorities shift entirely. Focus your attention heavily on Mechanical Efficiency. You must calculate both starting torque and running torque accurately. Always review the minimum and maximum RPM capabilities. An actuator must overcome static friction instantly when fluid hits it.
Manufacturer testing standards demonstrate these clear operational divides. Quality assurance teams drive pumps mechanically during their bench tests. An external shaft spins the unit to verify flow output. Actuators undergo a much different QA process. They require specialized fluid-driven starting tests. Technicians run these tests in both clockwise and counter-clockwise directions. They do this to verify breakaway torque efficiency under real fluid load.
Evaluation Metric | Pump Specification Focus | Motor Specification Focus |
|---|---|---|
Primary Efficiency | Volumetric Efficiency | Mechanical Efficiency |
Key Performance Indicator | Flow Rate (GPM/LPM) | Rotational Force (Torque) |
Quality Assurance Test | Mechanically driven spin test | Fluid-driven breakaway starting test |
Success Criteria | Matches flow without excess heat | Provides torque without stalling |
Define your success criteria early in the design phase. A successful specification perfectly matches the required flow rate. It achieves this without generating excess fluid heat. A successful actuator specification looks completely different. It provides adequate breakaway torque immediately upon startup. It continues running smoothly without stalling under peak physical loads.
Engineers categorize these components based on their internal working mechanisms. Each category serves a highly specific industrial purpose.
Gear designs remain highly cost-effective options for many industries. Gear pumps tolerate fluid contamination exceptionally well. We often specify them for moderate-pressure mobile equipment. They work perfectly in standard agricultural tractors. Gear actuators suit entirely different mechanical scenarios. They excel in high-speed, low-torque applications. You frequently find them spinning large cooling fan drives.
Vane designs focus heavily on operational smoothness. Vane pumps deliver a remarkably smooth, constant fluid flow. They maintain very low noise profiles during continuous operation. We see them often in indoor industrial settings. Vane actuators offer exceptionally low rotational inertia. This characteristic makes them highly responsive. They fit perfectly into systems requiring high-frequency starting, stopping, and reversing.
Piston designs dominate extreme industrial applications. Both categories here offer absolute peak efficiencies. They deliver maximum volumetric and mechanical efficiency simultaneously. They are strictly essential for extreme high-pressure operations. Heavy-duty excavators rely heavily on piston designs. Applications requiring ultra-precise control demand piston-driven architecture.
You only find orbital designs in the actuation category. Engineers design them specifically to deliver high torque at low speeds (LSHT). They generate massive rotational force without spinning quickly. They are absolutely essential for heavy-duty street sweepers. Agricultural conveyors and heavy winch drives utilize them constantly. They eliminate the need for cumbersome external gearboxes. This saves valuable space on mobile machinery.
Procurement teams sometimes seek dangerous system shortcuts. They attempt to modify a pump to act as a rotational actuator. We call this the pump-as-a-motor fallacy. Efficiency collapse happens almost immediately upon startup.
Power generation units simply lack the necessary internal structural optimization. They cannot convert fluid pressure into physical torque efficiently. You will experience massive mechanical energy losses. Fluid slips past the internal gaps. The unit generates excessive heat instead of rotational force.
Torque limitations compound this mechanical problem further. Standard units lack robust internal bearing structures. They cannot handle heavy radial and axial loads. Mechanical actuation destroys their standard bearings quickly. The internal components will grind together and fail.
Backpressure Monitoring: Never ignore backpressure limits on standard seals. Reversing direction creates massive pressure spikes. You must ensure the housing can handle these return line forces.
External Drain Routing: Always verify your external drain line routing. Do not connect it to a high-pressure return line. It must flow freely back to the unpressurized reservoir.
Managing Inertia: High-inertia loads require special hydraulic attention. Imagine a hydraulic motor driving a massive steel cooling fan. The heavy fan continues spinning after the fluid supply stops. It turns into a makeshift pump.
Anti-Cavitation Protection: You must install anti-cavitation valves to manage this freewheeling inertia. The valves provide makeup fluid. They protect the actuator from destroying itself through severe fluid starvation.
Ignoring these rollout considerations leads to immediate component failure. You must respect the directional intent of every hydraulic component. Engineering shortcuts in fluid power always result in catastrophic mechanical breakdowns.
Pumps and rotational actuators share fundamental fluid power principles. However, engineers design them for completely opposite ends of the energy conversion spectrum. One creates the power, and the other consumes it. You must respect their structural differences to build a functional circuit.
We covered exactly why symmetric ports and heavy-duty seals matter. We showed how mechanical efficiency differs fundamentally from volumetric efficiency. You now understand why modifying components leads to immediate bearing failure and seal blowouts.
Take time to audit your specific system requirements today. Document your maximum operating pressure carefully. Calculate your required breakaway torque exactly. Identify any bidirectional rotation needs in your machine. Once you gather this data, consult with a specialized manufacturer. Select dedicated components built specifically for your rigorous operational loads.
A: Theoretically yes, but practically no. Pumps lack the internal symmetry, high-pressure seals, and mechanical efficiency required to reliably generate torque. Attempting this substitution leads to poor mechanical performance, massive internal energy losses, and rapid component failure under load.
A: Because motors operate with high pressure at both ports, especially during reversing or under heavy backpressure. Internal leakage cannot be vented to a low-pressure suction port like in a standard pump. The external drain line safely routes this casing leakage to the reservoir, protecting the shaft seal from blowing out.
A: Volumetric efficiency is highly critical for pumps. It measures how effectively a component maintains fluid flow against pressure without internal fluid slip. Mechanical efficiency is critical for motors. It measures how effectively the component converts fluid pressure into physical rotational force without succumbing to internal mechanical friction losses.
