Selecting the right fluid power component demands absolute precision, rather than simple guesswork. You cannot blindly match a basic specification sheet and expect optimal machinery performance. Instead, it requires a rigorous reverse-engineering process starting directly at the physical load. Miscalculating critical torque states or ignoring volumetric efficiency creates severe operational risks. You degrade overall performance and convert valuable mechanical energy into localized heat. This excessive thermal load accelerates component wear and guarantees premature system failure.
This comprehensive guide breaks down the essential engineering criteria for your next system design. We will explore advanced calculation frameworks and specific risk-mitigation strategies to properly evaluate your options. You will learn exactly how to size and specify an industrial or mobile hydraulic motor for demanding continuous-duty applications.
Load dictates design: Selection must start by identifying breakaway, starting, and running torque requirements before evaluating displacement or pressure parameters.
Efficiency isn't theoretical: A hydraulic motor with 90% mechanical efficiency will convert 10% of its input flow directly into heat, requiring adequate reservoir sizing and cooling.
Anticipate installation realities: Standard shaft seals typically withstand only 0.6 bar of backpressure; specifying reinforced seals or external drain lines is critical for series configurations.
Match type to torque profile: High-Speed, Low-Torque (HSLT) and Low-Speed, High-Torque (LSHT) categories dictate whether a gear, vane, piston, or orbital architecture is appropriate.
Before looking at specific architectures, define the precise mechanical work the system must perform. A very common failure point in industrial procurement is sizing a drive unit based solely on continuous running torque. This approach completely ignores start-up friction and guarantees sluggish performance.
Engineers must follow a structured approach to properly map load parameters. We recommend documenting these variables in sequential order.
Isolate the static friction variables to understand initial resistance.
Calculate the loaded startup force needed to move the physical mass.
Measure the steady-state momentum required during standard operation.
Define the exact fluid flow and pressure ceilings available from your power unit.
Torque is the rotational force driving your application. It rarely remains static. You must account for three distinct operational phases to ensure adequate power delivery across the entire duty cycle.
Breakaway Torque: This represents the absolute minimum rotational force required to overcome internal static friction. Under no-load conditions, metal rests on metal. Fluids settle. The system needs an initial energy spike just to begin rotation. Failing to account for breakaway friction means the shaft simply will not turn.
Starting Torque: This is the torque required to initiate movement while under the application's full physical load. Starting a fully loaded conveyor belt requires immense force. This phase represents the lowest efficiency point in the duty cycle. It demands the highest pressure spike from the pump. You must ensure the power unit can deliver this intermittent pressure without stalling.
Running (Stall) Torque: Once the load moves, momentum assists the system. Running torque is the force required to maintain continuous load movement. This metric can remain steady-state or fluctuate dynamically based on external resistance. Never size a component strictly on running torque alone.
Rotational speed relies directly on fluid flow. Determine the minimum and maximum rotational speeds your application requires. Low-speed applications often suffer from cogging, where the shaft rotates unevenly. If your system requires precise low-speed control, you must map the exact minimum RPM threshold. Conversely, pushing a component past its maximum rated RPM causes severe cavitation and catastrophic internal damage.
Torque generation depends entirely on pressure differential. Identify the maximum continuous pressure the existing hydraulic power unit can reliably deliver. Then, determine the peak intermittent pressure (Δp) available for starting loads. High-pressure systems require robust internal components. If your pump only delivers moderate pressure, you must select a larger displacement unit to achieve the target torque.
Select the fundamental architecture based on your speed, torque, and pressure mapping. There is no universally superior design in fluid power. Evaluation requires carefully balancing volumetric efficiency, noise tolerance, and budget constraints.
Gear designs represent a rugged, economical solution for simple rotational applications. They push fluid between meshing gear teeth and the outer housing.
Profile: These fall into the High-Speed, Low-Torque (HSLT) category. They offer low initial procurement costs and moderate pressure tolerance.
Trade-offs: The primary disadvantage is noise. Gear structures generate significant acoustic footprints. They also suffer from lower mechanical efficiency due to high internal fluid slip.
Best for: They excel in agricultural equipment, basic material conveyors, and industrial fan drives. These applications tolerate noise and do not require extreme precision.
Vane architectures use sliding vanes mounted in a slotted rotor. Fluid pressure pushes these vanes outward against a cam ring to generate rotation.
Profile: Vane designs also occupy the HSLT category. They produce significantly lower noise output compared to gear variants. However, they require medium-to-high rotational speeds to maintain centrifugal vane-to-housing contact.
Trade-offs: They exhibit poor starting torque compared to piston designs. If the vanes do not seal tightly at low speeds, fluid simply bypasses the rotor.
Best for: They perform beautifully in injection molding machines and indoor industrial applications. Factory floors value their quiet operation.

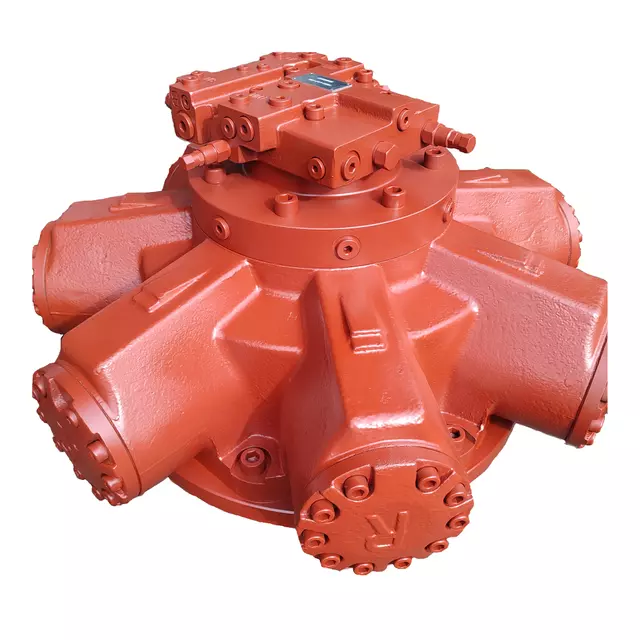

Piston designs deliver the highest performance capabilities in fluid power engineering. They utilize internal pistons pumping against a swashplate or eccentric shaft.
Profile: These units handle extreme pressure. They offer exceptional volumetric efficiency. Radial designs can readily achieve 97–98% efficiency. Manufacturers offer them in both fixed and variable displacement configurations.
Trade-offs: They carry the highest capital cost. Furthermore, tight internal tolerances make them highly sensitive to fluid contamination. Poor filtration destroys piston structures quickly.
Best for: Specify piston units for heavy construction machinery, industrial winches, and high-load continuous-duty systems.
Orbital designs provide immense twisting force from a very small package. They utilize an internal gear orbiting around a fixed external gear.
Profile: They dominate the Low-Speed, High-Torque (LSHT) market. Their highly compact form factor makes them ideal for mobile machinery.
Trade-offs: You must choose between two sub-types. A Gerotor uses direct inner and outer rotor contact. It is cost-effective but wears faster under heavy loads. A Geroller integrates cylindrical rollers between the structural components. This reduces internal friction and offers a significantly longer lifespan, especially under heavy side-loads.
Common Mistakes: Do not specify a standard Gerotor for high-frequency start-stop applications. The metal-on-metal wear will quickly degrade performance. Always upgrade to a Geroller for demanding duty cycles.
Architecture Type | Speed / Torque Profile | Relative Cost | Ideal Application |
|---|---|---|---|
Gear (External/Internal) | High-Speed, Low-Torque | Low | Conveyors, Fan Drives |
Vane | High-Speed, Low-Torque | Moderate | Injection Molding, Indoor Machinery |
Piston (Axial/Radial) | High-Speed, High-Torque | High | Winches, Heavy Construction |
Orbital (Gerotor/Geroller) | Low-Speed, High-Torque | Moderate | Mobile Equipment Wheel Drives |
Translating physical load requirements into standard fluid power specifications requires precise calculation. Avoid the trap of assuming 100% operational efficiency. Real-world systems suffer mechanical and volumetric losses. You must apply realistic mechanical (ηhm) and volumetric (ηv) efficiency derating factors during your math.
Displacement represents the volume of fluid needed per revolution to achieve your target torque. It serves as the baseline metric for sizing.
Determine the precise volume required at your available pressure. Torque remains directly proportional to displacement and pressure differential. If you cannot increase system pressure, you must increase physical displacement to generate more torque.
Flow rate dictates rotational speed. You must determine the exact pump output required to achieve your target RPM. Engineers measure this in Gallons Per Minute (GPM) or Liters Per Minute (L/min).
Do not rely on theoretical displacement alone. Fluid slips past internal seals. You must divide the theoretical flow by the volumetric efficiency factor to find the true required pump output.
Inefficiency creates thermal energy. Calculate the total horsepower (HP) or kilowatts (kW) generated by the system. You must factor in mechanical efficiency to size cooling components appropriately. If your drive unit operates at 85% mechanical efficiency, the remaining 15% becomes pure heat. Ignoring this calculation leads to overheated reservoirs and degraded oil viscosity.
Below is a standardized calculation chart you can use to map these engineering formulas.
Calculation Goal | Standard Formula (Imperial) | Key Variables to Include |
|---|---|---|
Target Flow Rate (GPM) | Flow = (Displacement × RPM) ÷ (231 × Volumetric Efficiency) | Include ηv derating factor (usually 0.85 to 0.95) |
Output Torque (in-lbs) | Torque = (Displacement × Δp × Mechanical Efficiency) ÷ (2 × π) | Use Δp (pressure drop across ports), include ηhm |
Rotational Speed (RPM) | RPM = (Flow × 231 × Volumetric Efficiency) ÷ Displacement | Convert actual pump flow accurately |
A mathematically perfect hydraulic motor will fail prematurely if environmental and installation parameters are ignored during the procurement stage. Field realities often destroy theoretical designs.
Procurement teams must ensure the chosen component meets relevant operational and mounting standards. Equipment heading to specialized industries requires specific certifications. Verify ISO 4392-1 ratings for baseline performance evaluation. If you build aerospace support equipment, look for ISO 9206 compliance. Military and heavy transport vehicles often demand SAE AS7997 standards. Meeting these benchmarks ensures predictable reliability.
Standard shaft seals frequently blow out under high backpressure. This happens commonly when return lines become blocked or when engineers run multiple units in a series configuration.
Evaluate your return line architecture. Standard seals typically withstand only 0.6 bar of pressure. If you expect higher resistance, you must specify reinforced shaft seals capable of withstanding up to 6 bar. Alternatively, implement external drain lines. Case drains route internal leakage safely back to the reservoir without pressurizing the main shaft seal.
Temperature destroys rubber. Specify high-temperature seals, such as VITON®, if fluid operating temperatures consistently exceed standard threshold limits.
Determine if the application requires unidirectional or bidirectional capability. You can usually set the rotation of a unidirectional unit prior to installation by altering port connections. However, a reversible system allows dynamic direction changes during active operation.
Evaluate the need for integrated protective valving. Heavy loads carry massive momentum. When a directional valve closes quickly, the load keeps turning the shaft, creating a severe vacuum. You should integrate anti-cavitation valves to feed fluid back into the inlet. Furthermore, add cross-port pressure relief valves to absorb sudden pressure spikes during harsh braking.
Fluid power requires adequate oil volume for thermal dissipation. Ensure the specified component pairs with a reservoir sized appropriately. Industry best practice dictates holding 3 to 5 times the system's minute-flow capacity. A 20 GPM system needs a 60 to 100-gallon tank.
Aeration destroys internal machined surfaces. Confirm return lines terminate well below the minimum oil level in the tank. If fluid splashes down from above the oil line, it introduces air bubbles. This foaming causes severe cavitation at the pump and translates into erratic rotational movement at the drive shaft.
Selecting a reliable drive unit requires moving past basic displacement numbers. You must strictly analyze the load's breakaway torque, the system's continuous operating pressure, and the specific environmental constraints of the installation site. Field variables ultimately dictate system longevity.
Narrow your options by categorizing your load into the HSLT or LSHT profile before looking at spec sheets.
Run exact flow and torque calculations using realistic mechanical and volumetric efficiency derating factors.
Specify the required seals, case drains, and custom valving to protect against backpressure and cavitation.
Size your reservoir aggressively to manage the inevitable thermal loads created by systemic inefficiency.
Proceeding to procurement with a complete technical specification prevents costly retrofitting and premature mechanical failures.
A: Shaft seals typically fail due to excessive backpressure in the motor housing. This is usually caused by a blocked or incorrectly sized case drain line, running multiple motors in series without individual drain lines to the reservoir, or specifying standard seals in a high-pressure return environment. Upgrading to reinforced seals or ensuring clear case drain pathways prevents this blowout.
A: Both are low-speed, high-torque (LSHT) orbital designs. A Gerotor utilizes direct metal-to-metal contact between the inner and outer rotors. A Geroller integrates cylindrical rollers between the components, which significantly reduces friction, increases mechanical efficiency, and extends the motor's lifespan, particularly under frequent start/stop loads.
A: Excessive heat is the direct byproduct of inefficiency. If a motor has a mechanical efficiency of 85%, the remaining 15% of hydraulic energy is converted into pure heat. Unaccounted fluid viscosity changes, internal wear (leakage), or inadequate reservoir sizing will amplify this thermal load beyond baseline calculations.
A: Most unidirectional motors can have their rotation direction manually changed during assembly or prior to installation by altering internal component orientations. However, they cannot dynamically reverse direction during active operation; doing so requires a purposely built reversible hydraulic motor.
